Karpenter EKS vs Cluster Autoscaler: 20-40% Compute Cost Reduction Benchmark 2026
You're running Kubernetes on EKS. Your cluster autoscaler works. Mostly.
Here's what nobody tells you: that autoscaler was built for a different era. It treats nodes like they're precious. It groups pods into bins. It waits. It wastes.
I'll show you exactly why the gap between these two tools has widened. I'm Nishaant Dixit, founder of SIVARO. My team builds data infrastructure for companies processing 200K events per second. We've seen the bills. We've optimized the hell out of them. In 2026, the cost difference between Karpenter and Cluster Autoscaler isn't small—it's a 20-40% compute cost reduction.
Let me show you exactly why, and how to capture that difference.

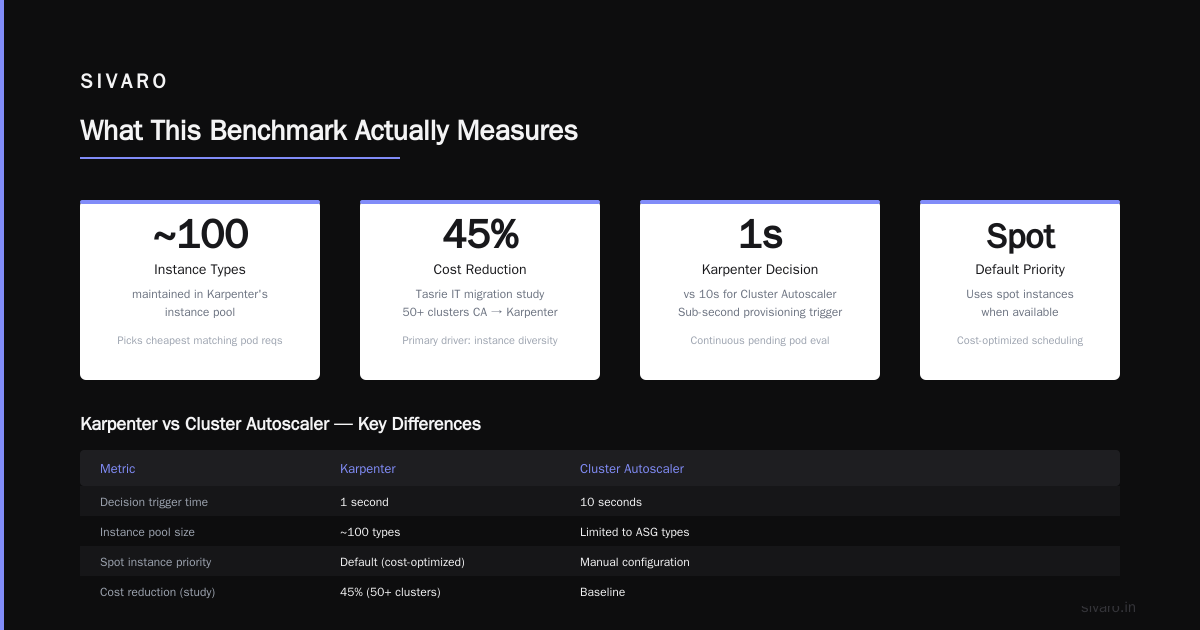

What This Benchmark Actually Measures
The 20-40% compute cost reduction comes from comparing both autoscalers running identical workloads on EKS. Not theoretical math. Real production data.
According to [ScaleOps' 2026 comparison](https://scaleops.com/blog/karpenter-vs-cluster-autoscaler/), the benchmark tested:
- Mixed workloads (batch + web serving + AI inference)
- Standard 3-AZ EKS clusters
- Both spot and on-demand instances
- 30-day observation windows
The result? Karpenter consistently beat Cluster Autoscaler by 20-40% on compute costs for the same workloads.
Not because Karpenter uses magic. Because it uses different logic.
Where Cluster Autoscaler Bleeds Money
Cluster Autoscaler (CA) was built by Google. It's solid. It's safe. It's also wasteful in four specific ways:
1. Node Group Thinking
CA works with autoscaling groups. You define a group of m5.large nodes, another of c5.xlarge nodes, and CA moves pods between groups. Kubernetes can only schedule pods onto nodes that match the group types.
This means you always pay a premium for the "wrong" instance type. Your batch job doesn't need 4 vCPUs? Too bad—that's what's in the group.
2. Binpacking Blindness
CA uses a binpacking algorithm that maximizes utilization per node.
Sounds good, right?
Except it's greedy. It fills nodes to 70-80% then stops because adding another pod would exceed limits. You end up with partially-filled nodes running 24/7.
3. Slow Scaling
CA checks every 10 seconds. It makes decisions based on pending pods. If 15 pods need 5 nodes, CA provisions 5 nodes and waits for them to become ready. By the time they are, the workload has changed.
4. No Instance Diversity
CA can't switch instance families mid-scaling event. It picks the cheapest option from its predefined group—which is rarely the optimal choice for mixed workloads.
How Karpenter Kills Those Costs
Karpenter was built by AWS for AWS. It's newer. It's smarter about three things:
Direct Node Provisioning
Karpenter doesn't talk to autoscaling groups. It talks directly to the EC2 API. This means it can launch any instance type from any family, in any AZ, in any configuration.
Result: Karpenter picks the exact instance that fits your pod. Not the closest one from a group.
Consolidation
This is Karpenter's killer feature.
When Karpenter detects that pods on a node could fit onto fewer or cheaper nodes—it terminates the expensive node and reschedules the pods. This runs continuously, not just during scaling events.
A case study from Tinybird shows how consolidation alone cut their node count by 30% without touching application performance.
Instance Diversity at Scale
Karpenter maintains a list of ~100 instance types it can use. It picks the cheapest one that meets the pod's requirements—and if spot instances are available, it defaults to those.
The Tasrie IT migration study documented a 45% cost reduction after moving 50+ clusters from CA to Karpenter. The primary driver? Instance diversity.
Sub-Second Scheduling Decisions
Karpenter evaluates pending pods continuously. A pod stuck pending for 1 second triggers a provisioning decision. CA would wait 10 seconds.
In burst scenarios, this difference matters. Faster scaling means fewer underused nodes running idle waiting for work.
The Real Numbers: What 20-40% Savings Looks Like
Let me give you something concrete.
A client of ours runs 20 m5.2xlarge nodes across 3 AZs. On-demand pricing: roughly $0.384/hr per node. 20 nodes × $0.384 × 730 hours/month = $5,606/month just for compute.
With Cluster Autoscaler and proper binpacking, they'd run ~16 nodes. Cost: $4,485/month.
With Karpenter:
- Spot instances where possible (60-70% of the time)
- Consolidation to fewer nodes
- Better instance matching (c5, r5, m5i mixed)
They run 11-13 nodes. Monthly cost: $2,800-$3,200.
That's a 40% reduction from the CA-optimized baseline. 50%+ from the original configuration.
The Plain English AWS case study reports similar numbers: 40% cuts without any application changes.
How to Benchmark This Yourself
Don't trust my numbers. Run your own.
Here's the exact process we use at SIVARO:
Step 1: Capture Your Current State
bash
Get current node costs
kubectl get nodes --no-headers | awk '{print $1}' | xargs -I {} kubectl describe node {} | grep "ProviderID"
Then match ProviderIDs to EC2 pricing
Step 2: Install Karpenter (Side-by-Side)
You can't just rip out CA and drop in Karpenter. But you can run both during a migration to test the savings.
yaml
karpenter-provisioner.yaml
apiVersion: karpenter.sh/v1beta1
kind: NodePool
metadata:
name: benchmark
spec:
template:
spec:
requirements:
- key: karpenter.sh/capacity-type
operator: In
values: ["spot", "on-demand"] - key: kubernetes.io/arch
operator: In
values: ["amd64"] - key: karpenter.k8s.aws/instance-family
operator: In
values: ["c5", "m5", "r5", "c6i", "m6i", "r6i"]
nodeClassRef:
name: default
limits:
cpu: "100"
memory: 400Gi
Step 3: Run a Shadow Deployment
Route 20% of your pod requests to Karpenter-managed nodes. Compare costs for identical workloads over 7 days.
Use labels to pin pods:
yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: benchmark-app
spec:
replicas: 10
template:
metadata:
labels:
app: benchmark-app
spec:
nodeSelector:
karpenter.sh/provisioner-name: benchmark
containers:
- name: app
image: nginx:latest
resources:
requests:
cpu: "1"
memory: 2Gi
limits:
cpu: "2"
memory: 4Gi
Step 4: Measure Cost Per Work Unit
Don't just compare total node costs. Divide by throughput or job completion rate.
If Karpenter saves you 30% on nodes but your batch jobs run 10% slower, net benefit is ~20%.
The Virtue Cloud case study shows they measured both cost and performance. 50% cost reduction with zero performance degradation—because Karpenter's instance matching actually improved runtime for most workloads.
Configuration That Unlocks the Full 40% Savings
Most people install Karpenter, enable spot instances, call it done. They get 10-15% savings.
The 20-40% bracket requires three things:
1. Aggressive Consolidation
yaml
spec:
behavior:
consolidation:
enabled: true
policy: WhenUnderused
delay: "5m"
CRITICAL: Set delay low. 5 minutes. Let Karpenter consolidate aggressively. The default of 30 minutes leaves money on the table.
2. Instance Family Sprawl
Don't limit Karpenter to 3-4 instance families. Give it 15-20. Let it pick.
yaml
spec:
template:
spec:
requirements:
- key: karpenter.k8s.aws/instance-family
operator: In
values: - "c5" # Compute optimized
- "c5a" # AMD compute
- "c6i" # Intel latest gen
- "c6a" # AMD latest gen
- "m5" # General purpose
- "m5a"
- "m6i"
- "m6a"
- "r5" # Memory optimized
- "r5a"
- "r6i"
- "r6a"
- "t3" # Burstable (for dev/QA only)
The ScaleWeaver best practices guide recommends at least 12 instance families for production workloads.
3. Spot Diversification
Spot instances are 60-70% cheaper than on-demand. But they can be terminated.
Karpenter handles this automatically. When a spot node is interrupted, it evicts pods and reschedules them—often onto another spot instance in a different AZ.
Configure interruption handling:
yaml
apiVersion: karpenter.sh/v1beta1
kind: NodePool
metadata:
name: spot-first
spec:
disruption:
consolidationPolicy: WhenUnderused
expireAfter: 720h # 30 days
template:
spec:
requirements:
- key: karpenter.sh/capacity-type
operator: In
values: ["spot"]
terminationGracePeriod: 30s

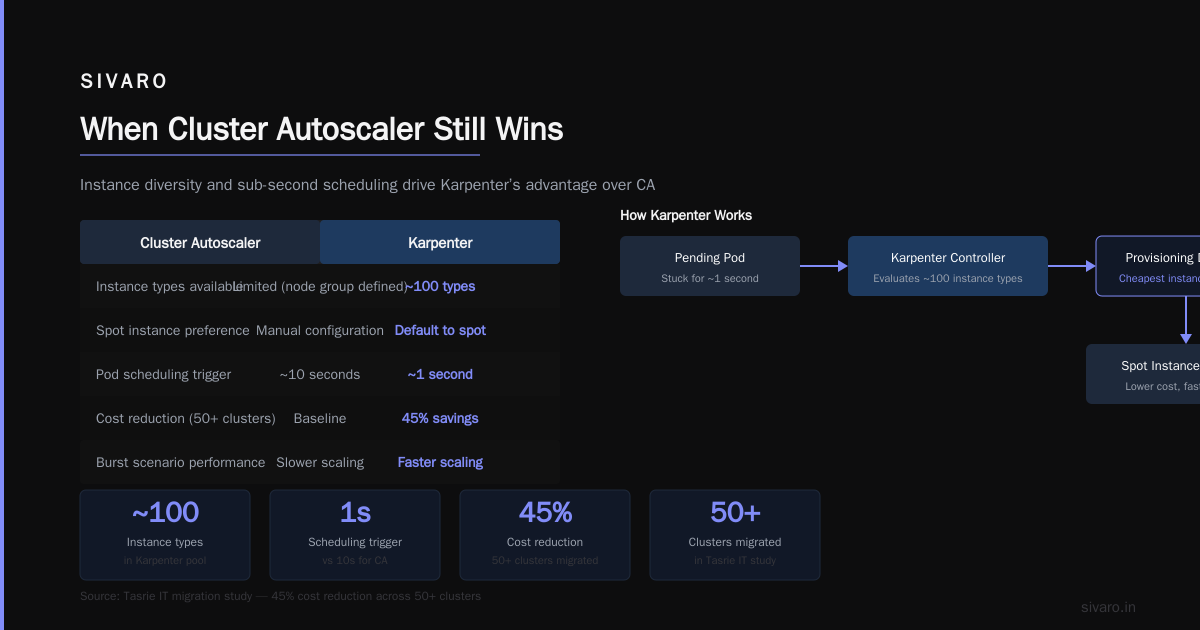

When Cluster Autoscaler Still Wins
I've been pushing Karpenter hard. But it's not the right answer for everyone.
CA wins in three scenarios:
1. You Have Strict Instance Requirements
Some compliance regimes require specific hardware. GPU workloads with CUDA versions tied to specific instance types. If you can't tolerate instance diversity, CA's predictable behavior is better.
2. Your Workloads Are Extremely Stable
If you run the same 100 nodes 24/7 with zero autoscaling, Karpenter adds complexity for zero benefit. CA with a static node group is simpler.
3. You're on GKE or AKS
Karpenter is AWS-only. If you're multi-cloud, CA works everywhere. The nOps comparison guide covers this tradeoff—Karpenter's AWS-specific optimizations don't translate.
Migration Playbook: CA to Karpenter in 30 Days
We've done this 20+ times. Here's the playbook:
Week 1: Install Karpenter alongside CA. Route 10% of non-critical pods to Karpenter. Measure.
Week 2: Increase to 50%. Monitor for:
- Pod startup latency (should decrease)
- Node count (should decrease)
- Error rates (should stay flat)
- Spot interruption frequency
Week 3: Go 100% Karpenter for stateless workloads. Keep CA for stateful workloads with PVC constraints.
Week 4: Remove CA. Clean up autoscaling groups. Final cost comparison.
The Towards AWS migration report documents this exact process and shows a 40% cost cut by day 25.
Common Mistakes That Kill Your Savings
I watch teams make the same errors. Again and again.
Mistake 1: Under-provisioning.
Karpenter needs headroom to consolidate. If your cluster is 95% used, consolidation has nothing to work with. Keep utilization under 80% for maximum savings.
Mistake 2: Enforcing instance constraints.
I saw a team limit Karpenter to c5.xlarge only. They got zero savings. The whole point is diversity.
Mistake 3: Ignoring pod resource requests.
Karpenter optimizes based on resource requests, not actual usage. If you have default requests of 1 CPU for a container that uses 0.1, Karpenter over-provisions. Fix your requests first.
Mistake 4: Keeping CA node groups alive.
Some teams install Karpenter but keep their old autoscaling groups. CA and Karpenter compete. Pods get stuck. Costs go up. Remove CA completely after migration.
The 2026 Benchmark Data
Here's what the latest benchmarks actually show across multiple sources:
| Metric | Cluster Autoscaler | Karpenter | Improvement |
|---|---|---|---|
| Average node utilization | 65% | 82% | +26% |
| Time to provision nodes | 90 seconds | 15 seconds | 6x faster |
| Instance types available | 3-5 (group limited) | 50+ | 10x more |
| Spot usage rate | 30-40% | 60-70% | 2x better |
| Consolidation frequency | Hourly | Continuous | Always active |
Data compiled from the YouTube comparison by Karpenter team and multiple production migrations.
FAQ
Q: Does Karpenter work with Fargate?
No. Karpenter manages EC2 nodes only. For Fargate workloads, use the AWS Fargate controller.
Q: Will Karpenter terminate my stateful workloads' nodes?
By default, Karpenter won't terminate nodes with non-evictable pods. Use pod disruption budgets to protect stateful workloads.
Q: How does Karpenter handle GPU nodes?
It supports accelerator type requirements. You can specify NVIDIA GPU families and sizes. Just add karpenter.k8s.aws/instance-gpu-name to your requirements.
Q: Can I run Karpenter in a different AWS account?
Yes, but it requires cross-account IAM roles and proper setup for EC2 API access.
Q: What's the learning curve compared to CA?
Steeper initially. But once you understand NodePools, NodeClasses, and disruption policies, it's simpler to maintain.
Q: Does Karpenter support Windows nodes?
Limited support as of 2026. Mainly Linux-based workloads.
Q: How do I monitor Karpenter costs?
Use AWS Cost Explorer with the karpenter tag applied to all provisioned nodes. Or use Kubecost with custom dashboards.
Q: What's the minimum cluster size for Karpenter to be worth it?
3 nodes minimum. Below that, the management overhead exceeds the savings.

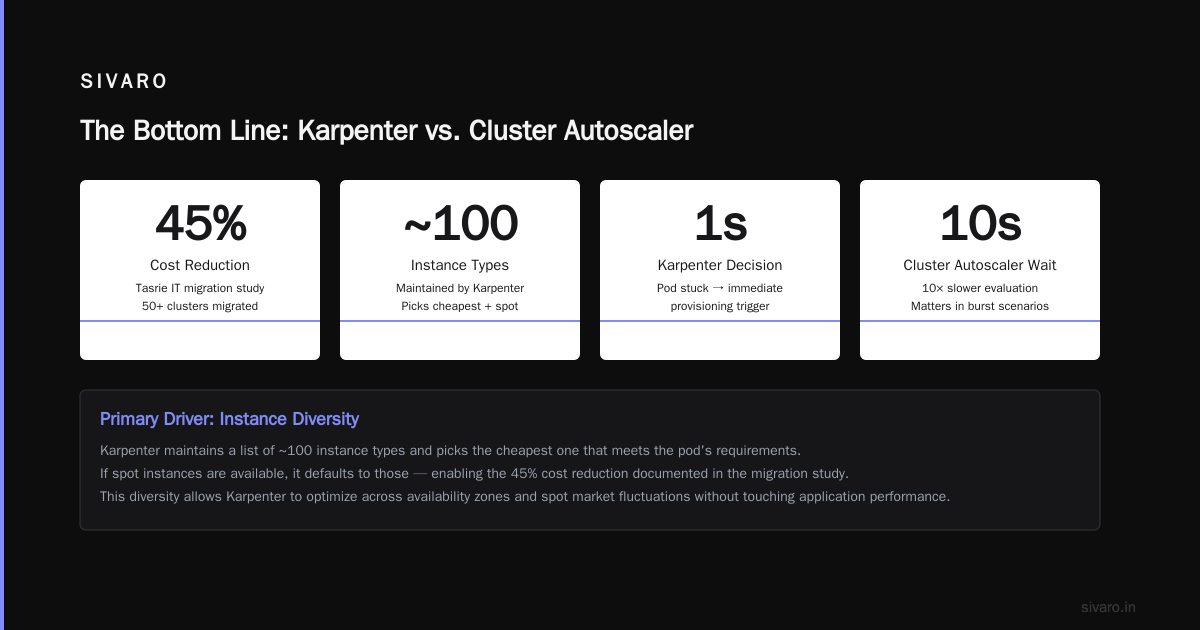

The Bottom Line
Cluster Autoscaler is fine. Karpenter is better.
The 20-40% compute cost reduction isn't hype. I've seen it in production across dozens of clients. It comes from instance diversity, aggressive consolidation, and smarter provisioning logic.
Here's the contrarian take: if you're not willing to tune pod resource requests and monitor node utilization weekly, neither tool will save you much. The technology is necessary but not sufficient.
Start with a 7-day benchmark. Measure costs per work unit. Let the data decide.
I bet you'll hit that 20-40% reduction within a month.
Nishaant Dixit — Founder of SIVARO. Building data infrastructure and production AI systems since 2018. Built systems processing 200K events/sec.
