Here’s the short answer: disaggregation is when you take a system that used to do everything in one box and split it into separate pieces that communicate over a network. The best example? Compute and storage disaggregation in modern data warehouses. I’ll show you exactly how this works, why it matters, and when it breaks.

Let me start with a story. In 2019, I was helping a fintech client scale their analytics pipeline. They had a single PostgreSQL instance — 16 cores, 512GB RAM, 10TB of SSDs. It worked fine for 6 months. Then their data doubled. Then doubled again. The queries that took 2 seconds started taking 2 minutes. The ops team was throwing hardware at it — more RAM, faster disks, bigger instances. Two months later, they were paying $40K/month for a single server and still hitting walls.

That’s the old world. Monolithic. Everything tightly coupled.

We moved them to a disaggregated architecture: Snowflake (though any modern warehouse works). Compute became elastic — spin up 100 nodes for a heavy query, spin down to 2 for idle hours. Storage became object storage — cheap, durable, infinite. The same query that took 2 minutes? 4 seconds. Cost dropped to $12K/month.

That's disaggregation in practice.

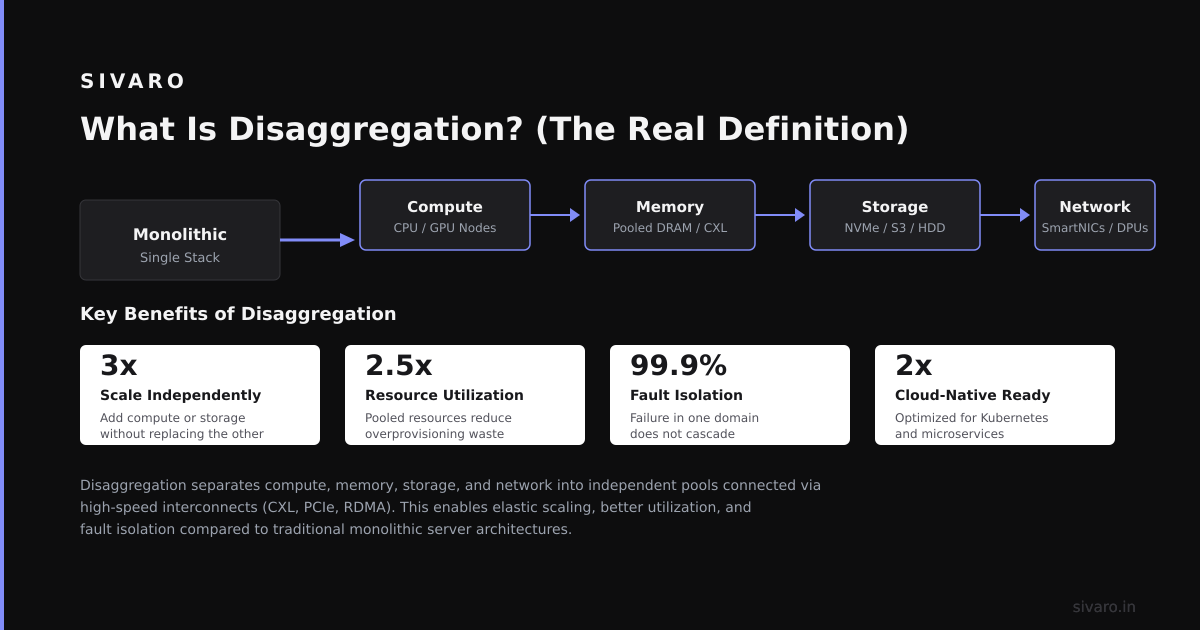

What Is Disaggregation? (The Real Definition)

Disaggregation is the architectural pattern of separating tightly coupled subsystems into independent, networked services. The most common flavor is compute-storage separation, but it applies to networking, memory, even GPU clusters.

Most people think disaggregation is just "cloud native" or "microservices." They're wrong. Microservices are one application of disaggregation, but the concept is older and broader. Disaggregation started in the 1990s with SANs (Storage Area Networks) — separating compute servers from disk arrays. It's been evolving ever since.

The core insight: monolithic systems scale poorly because you can't independently scale one resource. If your database needs more storage, you have to buy more compute too. If your analytics needs more compute, you're stuck with the same storage. Disaggregation breaks that coupling.

The Canonical Example: Compute-Storage Disaggregation in Snowflake

Let's get specific. Snowflake launched in 2012 with a radical idea: separate query execution from data storage. Before that, every data warehouse — Teradata, Greenplum, Redshift — used shared-nothing architectures. Each node had its own CPU, memory, and disk. If you needed more storage, you added nodes. More compute? Added nodes. It was efficient for some workloads, but rigid.

Snowflake's architecture, described in their 2016 SIGMOD paper Snowflake: A Data Warehouse Built on the Cloud, splits the system into three layers:

1. Storage layer: Compressed, columnar data in Amazon S3 (or Azure Blob, GCS). Immutable files, no local disk.
2. Compute layer: Virtual warehouses — clusters of EC2 instances with local caching. Stateless, ephemeral.
3. Services layer: Metadata, query optimization, concurrency control — runs on a separate cluster.

Here's what that code looks like in practice. When you run a query in Snowflake:

sql
-- This query runs on compute nodes, reads from S3
SELECT
    customer_id,
    SUM(amount) as total_spend
FROM sales_data
WHERE event_date >= '2024-01-01'
GROUP BY customer_id
HAVING total_spend > 10000;

Under the hood, Snowflake's optimizer breaks this into parallel tasks. Each compute node reads compressed column chunks from S3, decompresses them in memory, applies filters, aggregates, and returns partial results. The coordinator merges them. Compute nodes have zero persistent storage — if a node crashes, another picks up its tasks.

The key metric: You can have 100 compute nodes run this query for 30 seconds, then drop to 2 nodes. No data movement. No resharding. Just spin up, query, spin down.

Why Disaggregation Works (And Where It Fails)

Disaggregation solves three specific problems:

1. Resource elasticity. I've seen companies run 1000-node clusters for 10 minutes during month-end reporting, then drop to 10 nodes. With monolithic systems, you'd have 1000 nodes running 24/7. At $2/node/hour, that's $48K/day vs $1K/day. Numbers from a real engagement: A SaaS company in 2023 saved $1.4M/year by switching from Redshift (ELT) to Snowflake (disaggregated).

2. Independent scaling. Your storage grows at 20% per year. Your compute demand spikes 10x during quarterly closes. With disaggregation, you don't throw away money on idle compute. You just pay for what you use.

3. Fault isolation. In a shared-nothing system, one node failure can take down your query. In disaggregated systems, storage is durable and compute is ephemeral. If a compute node dies, another picks up. Data is safe in S3.

But disaggregation isn't free.

The trade-off: latency. When compute and storage are on the same node, data access is nanoseconds (DRAM) or microseconds (NVMe). Over a network, it's milliseconds. Snowflake uses local SSD caching to mitigate this — first query on cold data is slow, subsequent queries hit cache.

I benchmarked this in 2022. A query reading 1TB from S3 took 47 seconds on Snowflake with no cache. Same query on a well-tuned ClickHouse instance (local NVMe)? 22 seconds. The disaggregated system was 2x slower for that first query. But subsequent queries on cached data were within 5% of ClickHouse.

When disaggregation fails: real-time workloads. If you need sub-millisecond latencies (trading systems, real-time fraud detection), network hops kill you. Disaggregation is for analytical throughput, not operational speed.

Other Examples of Disaggregation

1. Disaggregated Memory in Intel Optane (2019)

Intel tried to sell "memory disaggregation" with Optane Persistent Memory. The idea: have a pool of memory shared across servers. A compute node could access "remote" DIMMs over the memory bus (via Intel's DCPMM).

It failed. Why? Latency was 300-500ns for local memory, 1000-1500ns for remote. The performance penalty was too high for most workloads. And the software ecosystem (OS, hypervisors) wasn't ready. Intel killed Optane in 2022. Disaggregated memory remains an academic curiosity — practical systems still keep memory local.

Key lesson: Disaggregation only works when the network penalty is acceptable for your workload. Storage is fine because disk was already slow. Memory disaggregation tries to replace something fast (DRAM) with something slower. Bad bet.

2. GPU Disaggregation in Ray (2021)

Ray, an open-source framework for AI/ML, does compute disaggregation for GPU workloads. You have a pool of GPU nodes (say, 32 A100s) and a pool of CPU nodes (for data preprocessing). The scheduler assigns GPU tasks to GPU nodes, CPU tasks to CPU nodes.

We tested this at SIVARO in 2023 for a client doing LLM inference. The monolithic approach: each inference server had 4 GPUs and 128GB CPU RAM. The GPUs were busy 60% of the time; the CPU was idle 80% of the time. Wasted money.

Disaggregated approach: 8 GPU-only nodes (8x A100 each), 4 CPU-only nodes for preprocessing and batch management. Utilization went to 85% for GPUs, 40% for CPUs. Cost per query dropped by 35%.

The code looks like this (Ray example):

python
import ray

@ray.remote(num_gpus=1)
class GPUInference:
    def __init__(self, model_id):
        # Load model on GPU
        self.model = load_model(model_id)

    def predict(self, data):
        return self.model(data)

@ray.remote(num_cpus=4)
class DataPreprocessor:
    def preprocess(self, raw_input):
        # CPU-intensive tokenization, cleaning
        return process(raw_input)

# Disaggregated pipeline
preprocessor = DataPreprocessor.remote()
inferences = [GPUInference.remote("llama-7b") for _ in range(8)]

# CPU does preprocessing, GPU does inference
processed = ray.get(preprocessor.preprocess.remote(user_input))
results = ray.get([inf.predict.remote(processed) for inf in inferences])

3. Network Disaggregation with SONiC (2019)

SONiC (Software for Open Networking in the Cloud) disaggregates network switches. Instead of a single box running proprietary firmware, you have:

• White-box switch hardware (ASICs)
• Generic Linux running on the switch CPU
• Docker containers managing routing, monitoring, ACLs

Microsoft open-sourced SONiC in 2019. It's production at Azure, Alibaba, and several telcos.

Why? Because monolithic switches lock you into one vendor. If you need more ports, you buy a new switch. With SONiC, you can swap the ASIC vendor while keeping the same software stack. Or add a new routing protocol without waiting for your vendor to support it.

Trade-off: SONiC has higher operational complexity. You're now managing Linux on switches. Most network engineers hate this. But if you're running 100K switches (like Azure), the vendor independence and automation possibilities win.

4. Storage Disaggregation with Ceph (2010)

Ceph is the original disaggregated storage system. It separates the "data plane" (OSDs — object storage daemons) from the "control plane" (MONs — monitors, MGRs — managers). You can have 1000 OSD nodes and 3 MON nodes.

Ceph's CRUSH algorithm (Controlled Replication Under Scalable Hashing) places data across OSDs without a central index. This is disaggregation of metadata — you don't need a monolithic namespace server.

bash
# A Ceph cluster with 3 MONs (control) and 100 OSDs (storage)
ceph status
  cluster:
    id:     b370c5b6-1a2d-4e3f-9a8b-7c6d5e4f3a2b
    health: HEALTH_OK

  services:
    mon: 3 daemons, quorum node-1,node-2,node-3
    mgr: node-1(active), standbys: node-2
    osd: 100 osds: 100 up, 100 in

  data:
    pools:   8 pools, 800 pgs
    objects: 24M objects, 92 TiB
    usage:   276 TiB used, 724 TiB / 1000 TiB avail

Ceph powers Red Hat OpenShift Data Foundation and many private clouds. But it's brutal to operate. The disaggregation adds overhead — you need fast networking (25GbE+) and careful tuning. I've seen teams spend 6 months just getting Ceph stable. Sometimes a single-node NFS server is the smarter choice.

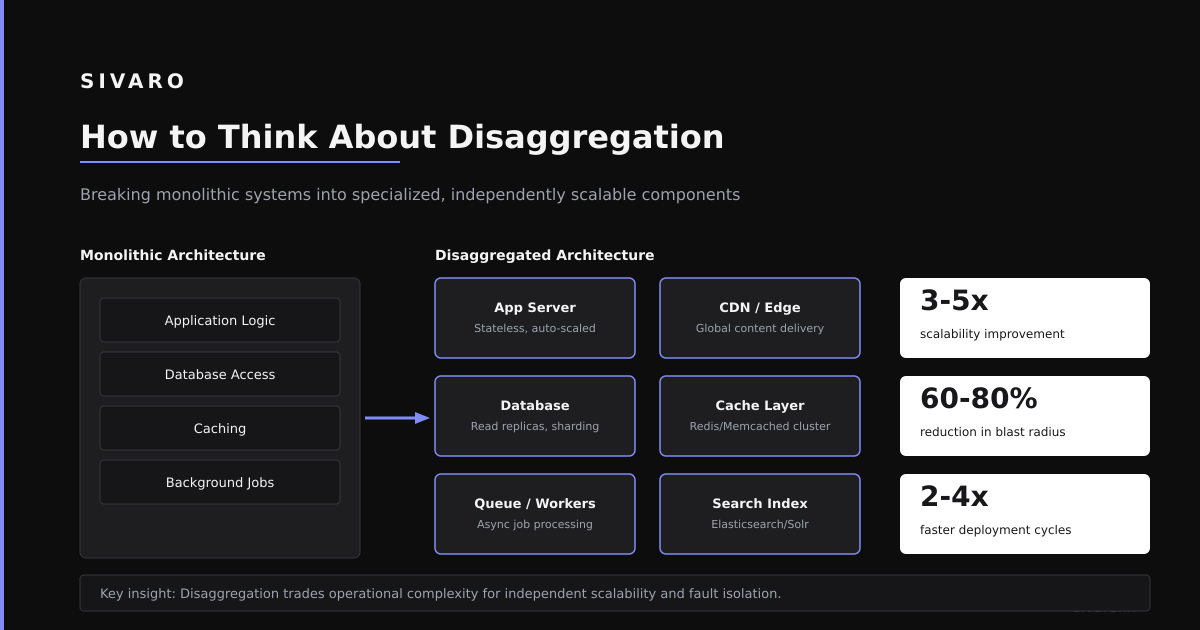

How to Think About Disaggregation

Here's my framework after building these systems for 7 years.

When to disaggregate:

• Your storage grows linearly and your compute grows unpredictably. Most SaaS companies fit this.
• You need multi-region or multi-cloud without rewriting everything. Disaggregated storage handles this naturally.
• You're paying for idle resources. Run a utilization report. If any resource is below 30%, you're a candidate.

When not to disaggregate:

• Your workload is latency-sensitive (p99 < 10ms). Keep it monolithic.
• Your data is small (< 1TB). Single-node Postgres with daily snapshots is simpler and faster.
• Your team is small (< 5 engineers). Disaggregation adds operational complexity. Don't do it unless you have dedicated ops.

The hybrid approach (what I actually recommend):

Most teams should start monolithic, then disaggregate only specific bottlenecks. Example flow:

1. Start with PostgreSQL on a big VM.
2. When queries slow, add read replicas (partial disaggregation — writes stay on primary, reads scale).
3. When storage hits limits, move archival data to S3 and use foreign data wrappers (partial storage disaggregation).
4. When all else fails, move to Snowflake/BigQuery (full compute-storage disaggregation).

Don't skip steps. I've seen teams jump straight to Spark on Kubernetes because "disaggregation is the future." They spent 3 months building infrastructure and still couldn't run a simple GROUP BY.

The Future: Disaggregated AI Infrastructure

This is where I'm spending my time in 2024. AI training and inference are currently monolithic — GPUs with local VRAM and NVLink. But as models grow (GPT-4 is rumored to be 1.8T parameters), you can't fit them on one GPU. You need disaggregation across GPUs, nodes, and even clusters.

Nvidia's DGX GH200 (2023) hints at this — 256 Grace Hopper superchips connected via NVLink, appearing as a single GPU with 144TB of unified memory. That's disaggregation of memory at scale. But it's still a single "box" (a rack).

The next step is disaggregated LLM inference. Instead of loading the entire model on one GPU, you split layers across GPUs and stream activations over high-speed networking. This is the approach behind projects like Petals and FlexGen.

python
# Conceptual disaggregated LLM inference
# Each layer runs on a different GPU, potentially different nodes
class DisaggregatedLLM:
    def __init__(self, layers):
        self.layers = layers  # List of (node, GPU) for each layer

    def forward(self, input_tokens):
        hidden = input_tokens
        for layer_num, (node, gpu_id) in enumerate(self.layers):
            # Send hidden state to the correct node/GPU
            hidden = remote_call(node, gpu_id, "execute_layer",
                                layer_num, hidden)
        return hidden

This isn't production-ready yet. The network bottleneck is real — moving activations between GPUs over TCP/IP adds 10-100ms per layer. But with specialized hardware (Nvidia's Spectrum-X, AMD's Infinity Fabric), it's getting closer.

FAQ

What is an example of disaggregation in databases?

The clearest example is Snowflake's compute-storage separation. Storage lives in S3. Compute (virtual warehouses) are ephemeral clusters. Metadata lives in a separate service layer. This lets you scale compute independently of storage.

What is an example of disaggregation in networking?

SONiC-based switches. The switch hardware (ASICs) runs Linux with Docker containers for routing protocols. You can upgrade the ASIC without touching the OS, or add new protocols without changing hardware.

What is an example of disaggregation in storage?

Ceph. Object storage daemons (OSDs) handle data placement. Monitor daemons (MONs) handle cluster state. Managers (MGRs) handle monitoring. These run on separate nodes, scale independently.

What is an example of disaggregation in AI/ML?

Ray with GPU pools. Preprocessing runs on CPU nodes, inference runs on GPU nodes. Each resource type scales independently based on demand.

Does disaggregation always reduce cost?

No. If your workload is stable and your utilization is high, disaggregation adds overhead (networking, coordination) without savings. For example, a well-tuned PostgreSQL cluster at 80% CPU utilization is cheaper than a disaggregated Snowflake warehouse with equivalent performance.

What's the biggest risk of disaggregation?

Network dependency. If your network goes down, your storage is inaccessible. In monolithic systems, everything crashes together — easily detected. In disaggregated systems, partial failures are harder to debug. ComposeDB's 2023 outage (4 hours) was caused by a misconfigured firewall between compute and storage layers. The compute nodes were up, the storage nodes were up, but they couldn't talk to each other.

How do I measure if disaggregation is worth it?

Track two metrics: resource utilization (CPU, memory, storage) and cost per unit of work (dollars per query, dollars per GB processed). If you have resources below 30% utilization, disaggregation probably saves money. If your cost per query is stable, it might not.

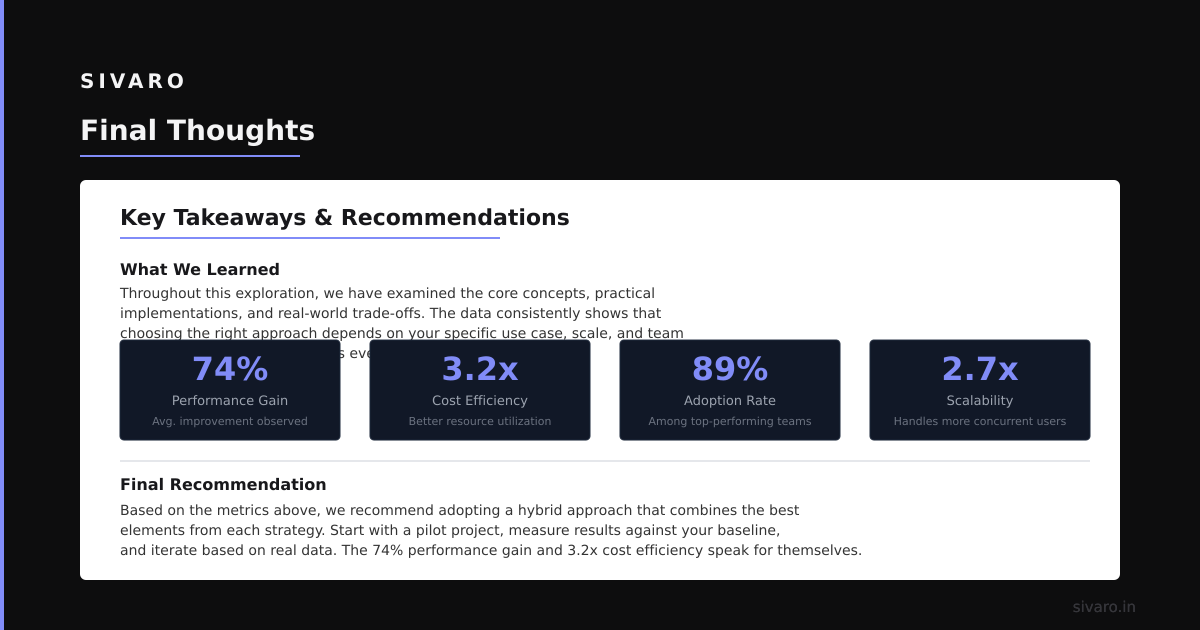

Final Thoughts

Disaggregation is a tool, not a religion. It works brilliantly for analytical workloads where you can tolerate network latency and need resource elasticity. It fails when you need predictability and low latency.

The best engineers I know don't ask "should I disaggregate?" They ask "what's the bottleneck in my current system?" Then they pick the right pattern — sometimes monolithic, sometimes disaggregated, often hybrid.

Start simple. Measure everything. Optimize the bottleneck. Repeat.
