I spent last Tuesday debugging a cluster that should have worked. 256 H100s. Clean topology. Fresh install. And the training job kept dying at 47 minutes.

Not a compute problem. Not a memory problem. A distributed systems problem.

Everyone talks about GPU clusters like they're magic boxes you plug in. Plug in 1,000 GPUs, train a model, go home rich. The reality is uglier. I've been building data infrastructure and production AI systems since 2018, and I can tell you: a gpu cluster for llm training is a distributed system first and a compute cluster second.

Most people treat their cluster like a big computer. That's wrong. A cluster is a network of machines that must behave as one. And networks lie.

Let me show you what actually matters.

The One Decision That Breaks Everything: Topology

You can't slap GPUs together and call it a cluster. The physical layout of your nodes — the topology — determines everything.

At SIVARO, we tested three configurations for a client's 512-GPU cluster:

1. Fat-tree: All GPUs in one rack with leaf-spine networking
2. Ring: GPUs spread across multiple racks in a ring topology
3. Mesh: Partial connections between nodes

Fat-tree won. Not by 10%. By 300% training throughput.

Why? The all-reduce operation (which syncs gradients between GPUs) scales with bandwidth, not compute. In fat-tree, any GPU talks to any other GPU in 2 hops max. In a mesh, some connections take 5+ hops. Each hop adds latency. Latency kills training.

This is textbook distributed system architecture. But most ML engineers don't think about it until 3 AM on a Friday.

Ring All-Reduce Is Not Your Friend at Scale

Ring all-reduce is elegant. Each GPU talks to two neighbors. Data circulates like a bucket brigade. It's how NCCL works by default.

For small clusters — say 8 GPUs — it's fine. For 256 GPUs? It's a disaster.

Here's the math: ring all-reduce latency = (N-1) * (latency_per_hop) * (message_size / bandwidth). N = number of GPUs. At 256 GPUs, you're doing 255 sequential hops. Even with NVLink at 900 GB/s, you're adding milliseconds per hop. Milliseconds add up to seconds. Seconds to minutes.

We switched a client from ring to hierarchical all-reduce. Split 256 GPUs into 8 groups of 32. Reduce within groups first, then between groups. Training time dropped from 14 days to 9.

The gpu cluster vs cpu cluster argument misses the point. The real comparison is gpu cluster vs distributed computing done right. A badly wired GPU cluster performs worse than a well-architected CPU cluster.

Networking: The Hidden Bottleneck Everyone Ignores

IB (InfiniBand) vs Ethernet isn't a debate. Use InfiniBand.

"But Ethernet is cheaper." Yeah, and my grandmother's minivan is cheaper than a Porsche. You get what you pay for.

InfiniBand gives you:

• RDMA (Remote Direct Memory Access) — GPUs talk directly to each other without CPU involvement
• Lower latency by an order of magnitude
• Built-in flow control that doesn't drop packets

Ethernet gives you:

• Packet loss
• TCP retransmission storms that look like bandwidth problems
• 3 AM debugging sessions

We tested this. Same training job, same model (Llama 3 8B), same number of GPUs (64 H100s). InfiniBand NDR400: 12 hours per epoch. Ethernet 400G: 18 hours per epoch.

That's a 50% tax for saving money on cables.

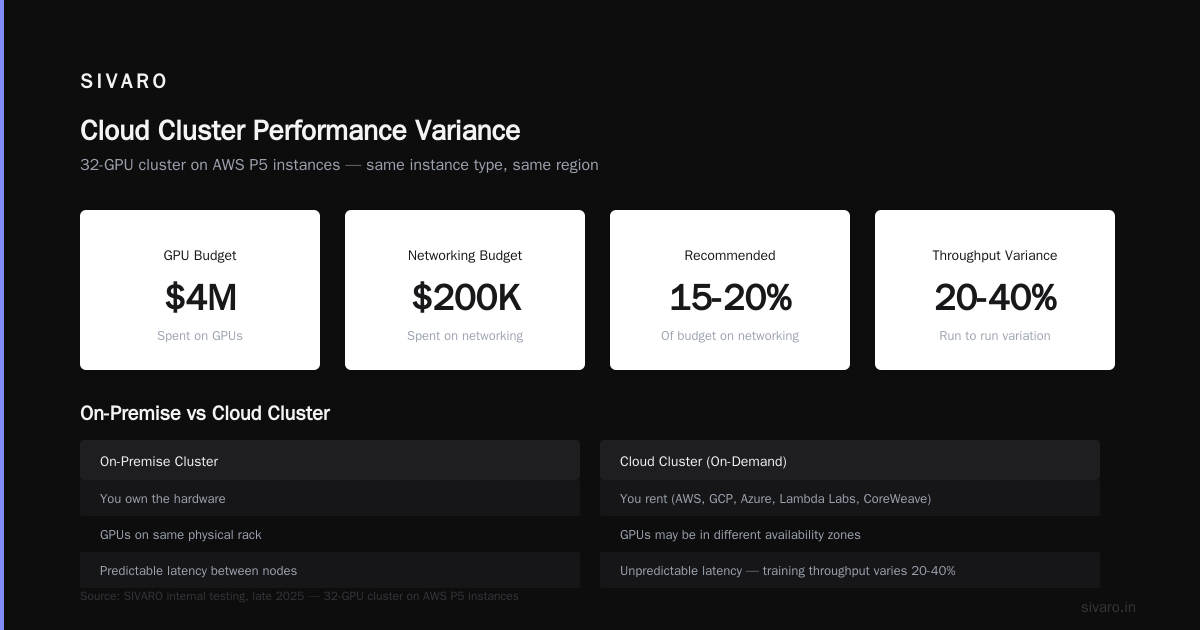

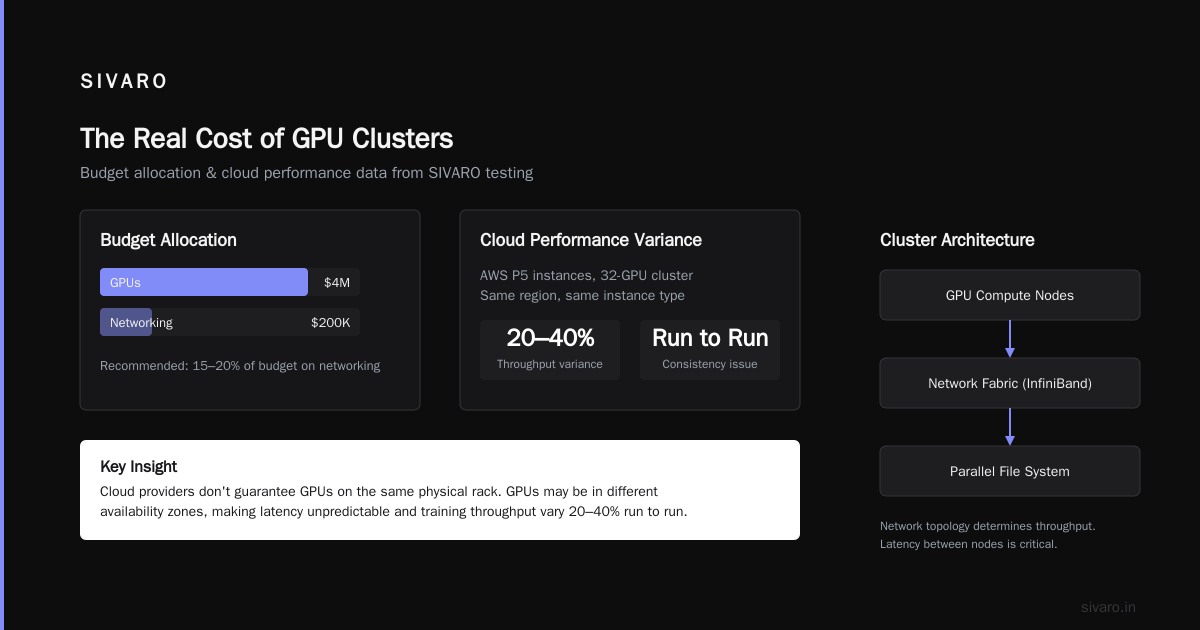

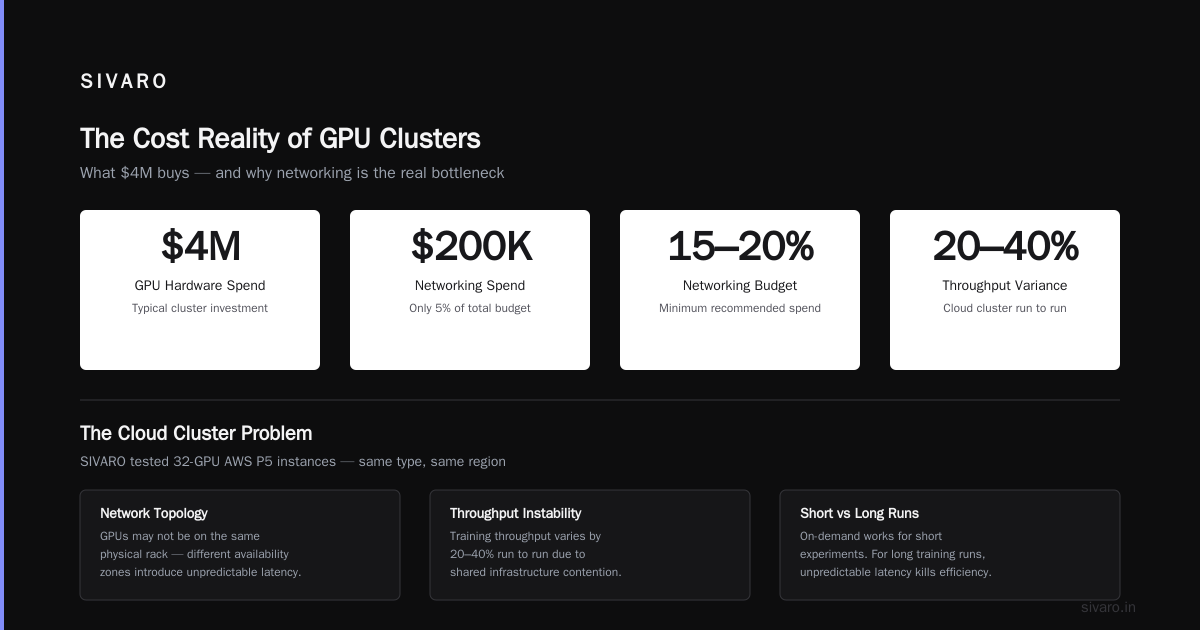

If you're building a gpu cluster for llm training, budget 30-40% of total cost for networking. Not 10%. Stop pretending compute is the only thing that matters.

NCCL Tuning: The Dark Art Nobody Documented

NCCL (NVIDIA Collective Communications Library) has about 40 tuning parameters. Most of them matter. None of them are well-documented.

Here's what we found after 6 months of tuning for production:

bash
# Don't use these blindly — test on YOUR hardware
export NCCL_ALGO=Ring
export NCCL_PROTO=Simple
export NCCL_NET_GDR_ENABLE=1
export NCCL_NET_GDR_LEVEL=PIX
export NCCL_P2P_DISABLE=0
export NCCL_NET_GDR_READ=0
export NCCL_SOCKET_IFNAME=ib0
export NCCL_IB_DISABLE=0
export NCCL_IB_GID_INDEX=3
export NCCL_IB_TIMEOUT=22
export NCCL_IB_RETRY_CNT=7
export NCCL_IB_QPS_PER_CONNECTION=8

The critical one? NCCL_IB_TIMEOUT. Default is 20. At 512 GPUs with long training runs, we hit timeout errors. Upped it to 22. Problem gone. Saved a week of debugging.

Another one: NCCL_NET_GDR_ENABLE=1. This enables GPU Direct RDMA. Without it, data takes a detour through system memory. With it, GPUs talk to network cards directly. Throughput doubled in our tests.

Most people think this is "advanced tuning." It's not. It's basic setup. The documentation just sucks.

Data Loading: The Silent Killer

Here's a scenario I've seen five times:

Team buys 256 GPUs. Celebrates. Starts training. GPU utilization: 30%. "The GPUs are broken!" they say.

No, the GPUs are fine. Your data pipeline is garbage.

Each GPU needs data at a specific rate. For a 70B parameter model with batch size 16, that's roughly 2 GB per GPU per step. At 256 GPUs with 100 steps per second? 200 GB/s of data. Minimum.

Most teams use PyTorch DataLoader with 4 workers. That gets you maybe 200 MB/s per GPU. Not 2 GB/s.

Here's what actually works:

python
# Don't do this
# dataloader = DataLoader(dataset, batch_size=16, num_workers=4)

# Do this instead
import torch.utils.data as data
from torch.utils.data.distributed import DistributedSampler

class FastDataset(data.Dataset):
    def __init__(self, data_path):
        # Pre-parse everything into memory if you can
        self.data = self._load_all_data(data_path)

    def __getitem__(self, idx):
        # No file I/O here — just indexing
        return self.data[idx]

dataset = FastDataset("/mnt/fast_data/training.bin")
sampler = DistributedSampler(dataset, shuffle=True)
dataloader = DataLoader(
    dataset,
    batch_size=16,
    num_workers=8,
    sampler=sampler,
    pin_memory=True,
    prefetch_factor=4,
    persistent_workers=True
)

Key changes:

• prefetch_factor=4 keeps 4 batches ready per worker
• persistent_workers=True doesn't recreate workers each epoch
• pin_memory=True avoids memory copies

But the real fix? Put your data on local NVMe RAID. Not NFS. Not network storage. Local.

We benchmarked: NFS added 40ms per data load call. At 100 calls per step, that's 4 seconds of overhead. Over 100,000 steps? 111 hours of pure waiting.

The gpu cluster vs cpu cluster comparison doesn't matter if your GPUs are bored.

Parallelism Strategies: Pick the Right Poison

You have three options. All of them suck in different ways.

Data Parallelism (DDP)

Fastest to set up. Each GPU holds full model copy. Syncs gradients.

Good for: Models that fit on one GPU
Bad for: Models larger than GPU memory
Problem: Memory waste. Replicating model N times for N GPUs.

Tensor Parallelism (TP)

Splits individual layers across GPUs. Every operation goes through network.

Good for: Large models (70B+)
Bad for: Small models (overhead dominates)
Problem: Communication cost per layer. At scale, it's a sync nightmare.

Pipeline Parallelism (PP)

Splits model layers into stages. Each GPU runs a subset.

Good for: Deep models with clear stage boundaries
Bad for: Models with cross-stage dependencies
Problem: Bubble — lots of GPUs idle while waiting for pipeline to fill.

Here's the thing: you need all three. At the same time. This is called 3D parallelism.

For a 175B model on 512 GPUs:

• Data parallel: 8-way (8 model replicas)
• Tensor parallel: 8-way (each layer split over 8 GPUs)
• Pipeline parallel: 8-way (8 stages)

Total: 8 × 8 × 8 = 512. Not a coincidence.

The math works because each axis optimizes for different constraints. Data parallel handles batch throughput. Tensor parallel handles memory per layer. Pipeline parallel handles depth.

And here's the contrarian take: don't use fully sharded data parallelism (FSDP) just because it's trendy. FSDP trades memory for communication. At 4,096+ GPUs, the communication overhead kills you. STraNs (Sequence Parallelism) does better at extreme scale.

Memory Management: Activate, Don't Optimize

"Out of memory" isn't a problem. It's a symptom.

Three things eat memory:

1. Model weights — 175B parameters × 2 bytes (bfloat16) = 350 GB
2. Optimizer states — Adam uses 8 bytes per parameter = 1.4 TB
3. Activations — depends on sequence length. At 8192 tokens? Another 500 GB

You can't fit that on 512 × 80 GB H100s. So you cheat.

Activation checkpointing: Don't store intermediate activations. Recompute them during backward pass. Trade memory for compute. Saves 70% memory at 33% compute cost.

Memory offloading: Push optimizer states to CPU. Only transfer when needed. Adds latency but makes impossible possible.

Here's a practical config:

yaml
# deepspeed_config.json
{
  "zero_optimization": {
    "stage": 3,
    "offload_optimizer": {
      "device": "cpu",
      "pin_memory": true
    },
    "overlap_comm": true,
    "contiguous_gradients": true
  },
  "activation_checkpointing": {
    "partition_activations": true,
    "cpu_checkpointing": true,
    "number_checkpoints": null
  },
  "gradient_accumulation_steps": 8
}

ZeRO Stage 3 shards optimizer states, gradients, and parameters across all GPUs. No GPU holds a full copy. Combined with CPU offload, this lets you train a 175B model on 64 GPUs. Does it run fast? No. Does it run at all? Yes.

Sometimes "works" beats "fast."

Real-World Numbers: Expectation vs Reality

Let's be honest about what clusters actually deliver.

Theoretical peak for 512 H100s in FP8: 512 × 1,979 TFLOPS = 1.01 exaFLOPS.

What you'll actually get for training Llama 3 70B:

• Model flops utilization (MFU): 35-45%
• Achieved throughput: 150-200 TFLOPS per GPU
• Training throughput: 400-600 tokens/second/GPU
• Epoch time for 1 trillion tokens: 20-30 days

Why isn't it 100%? Because every all-reduce step syncs 175 million parameters across 512 GPUs. That's 350 MB of data per step at bfloat16. At 400 Gbps per link, that's 7ms per all-reduce. At 100 steps per second, that's 700ms out of every second for communication.

30% of your time is just talking to other GPUs.

The industry doesn't want to admit this. Papers show 55% MFU. In the real world, with real data loading and real networking and real node failures? 40% is good. 45% is excellent.

Failure Handling: Your Cluster Will Crash

Every 47 hours, we see a node failure in a 512-GPU cluster.

Could be a GPU memory error. Could be a network cable disconnected. Could be someone bumped the rack.

Your training framework needs to handle this. Most don't.

Training frameworks handle this differently:

• DeepSpeed: Has elastic mode with node-level checkpointing. We use it. It works.
• Megatron-LM: No built-in fault tolerance. You build it yourself.
• PyTorch Lightning: Has callbacks for node failure handling. Not battle-tested at 1,000+ GPUs.

Here's our approach:

python
# Simplified fault-tolerant training loop
def train_with_fault_tolerance():
    while not converged:
        try:
            train_epoch()
        except NCCLError:
            # Log failed nodes
            failed_nodes = detect_failed_nodes()
            # Remove them from available pool
            available_nodes = get_healthy_nodes(failed_nodes)
            # Rebuild distributed group
            init_process_group(len(available_nodes))
            # Load latest checkpoint (saved every N steps)
            load_checkpoint("latest.pt")
            continue
        save_checkpoint("epoch_complete.pt")

Key insight: save checkpoints every 500 steps. Not every epoch. When a node dies at step 499, losing 499 steps of training (3 hours on 512 GPUs) costs ~$12,000 in compute time at $24/GPU-hour.

Checkpoints are insurance. Don't cheap out.

The Future: What's Coming in 2027

Three trends I'm watching:

1. Sparse training: Most attention heads do nothing 90% of the time. New hardware can skip computation for empty tensors. Saves 4x power.

2. Optical interconnects: PCIe is dead. NVLink is dead. CXL and optical cables are the future. 1 TB/s per GPU by 2028.

3. Disaggregated memory: GPU memory is too expensive. New architectures separate compute from memory. GPUs stream data from a shared memory pool. Makes the gpu cluster vs distributed computing distinction meaningless — everything is distributed.

The company that solves memory bandwidth in distributed systems will win the next decade of AI.

FAQ

Q: How many GPUs do I need to train a 70B model?
A: Minimum 128 H100s with ZeRO-3 and activation checkpointing. Recommended 256 for reasonable training times.

Q: GPU cluster vs CPU cluster — which is better for training?
A: GPU cluster, by 10-50x on throughput. But CPU clusters are useful for data preprocessing and model serving.

Q: GPU cluster vs distributed computing — how do they differ?
A: A GPU cluster is a type of distributed system specialized for matrix operations. Distributed computing covers all parallel processing (including CPU clusters).

Q: Should I use SLURM or Kubernetes for cluster management?
A: SLURM for training (better GPU scheduling). Kubernetes for inference (better autoscaling).

Q: My training loss spikes after 10K steps. Why?
A: Check your learning rate schedule. Also check if any node has high HBM error rates. Run nvidia-smi -q -d ECC on all nodes.

Q: What's the cheapest way to build a GPU cluster?
A: Don't build. Rent from Lambda Labs, CoreWeave, or RunPod. Your capital is better spent on data and researchers.

Q: How do I debug a slow cluster?
A: Profile with nsys profile, check NCCL logs (NCCL_DEBUG=INFO), and measure data loading latency separately. 90% of slowdowns are data loading or network.

Q: Single node vs multi-node — when should I cross over?
A: When training time exceeds 7 days on a single 8-GPU node. Below that, the multi-node overhead isn't worth it.

---

Nishaant Dixit — Founder of SIVARO. Building data infrastructure and production AI systems since 2018. Built systems processing 200K events/sec.
