AI Agent Deployment Pipeline Tutorial: From Notebook to Production in 2026
The first time we deployed an AI agent at SIVARO, it crashed within 47 seconds. Not because the code was bad — the agent worked perfectly in testing. It crashed because the upstream API throttled us, the database connection pool exhausted, and the observability stack (which we'd rigged up as an afterthought) gave us nothing but cryptic error messages.
That was early 2024. Two years later, after deploying over 200 production agents for clients across fintech, logistics, and healthcare, I've got strong opinions on what works and what doesn't.
This ai agent deployment pipeline tutorial walks through exactly how we ship agents today — the tools, the gotchas, and the monitoring you absolutely cannot skip.
What Actually Changed in Agent Deployment (Spoiler: Everything)
Back in 2023, deploying an agent meant wrapping a LangChain chain in a Flask app and calling it done. Most people thought agents were just fancy APIs. They were wrong.
Three things shifted the ground under our feet between 2024 and 2026:
First, agent lifespan exploded. Early agents handled single-turn requests — query comes in, answer goes out. Today's agents maintain state across days, execute multi-step plans, and interact with dozens of tools. That's not an API anymore. That's a stateful microservice with memory, and you can't deploy it like a stateless function.
Second, tool call volume went vertical. An internal agent at a logistics client hit 14,000 tool calls per hour during peak. Each call triggers sub-calls, retries, fallbacks. If your pipeline treats a tool call like a database query, your agent collapses under its own complexity.
Third, observability became non-negotiable. You can't debug a 50-step reasoning chain with logs. You need traces, spans, and the ability to replay agent sessions. I'll get to ai agent observability production strategies in a bit — trust me, you'll need them.
The Pipeline We Actually Use (Not the Pretty Diagram)
Let me show you the deployment pipeline we run at SIVARO. It's not fancy. It works.
┌─────────────┐ ┌──────────────┐ ┌──────────────┐ ┌─────────────┐ ┌──────────────┐
│ Agent Code │ -> │ Testing & │ -> │ Container │ -> │ Orchestration│ -> │ Observability │
│ (LangGraph/ │ │ Evaluation │ │ Build │ │ (K8s + Temporal)│ │ (Traces + │
│ CrewAI) │ │ │ │ │ │ │ │ Monitoring) │
└─────────────┘ └──────────────┘ └──────────────┘ └──────────────┘ └──────────────┘
Five stages. That's it. The depth is in the details.
Stage 1: Agent Code — Pick Your Framework Carefully
We tested seven agent frameworks last year. Our stack today? LangChain's LangGraph for stateful agents, and CrewAI for multi-agent workflows. I'll tell you why.

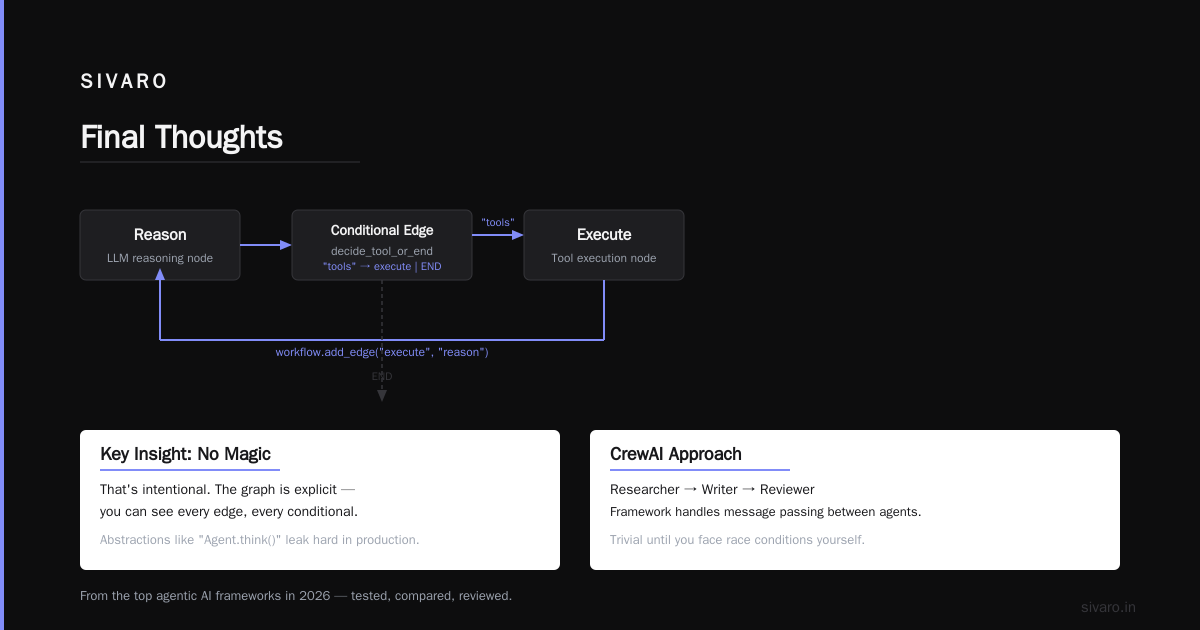

LangGraph gives you control. You define the state machine explicitly — nodes for reasoning, edges for transitions, conditional branches for tool selection. This isn't magic. It's a directed graph, and you can test every path.
python
# Simplified agent state machine pattern we use
from langgraph.graph import StateGraph, END
from typing import TypedDict, List
class AgentState(TypedDict):
messages: List[dict]
next_action: str
tool_results: dict
def reason_node(state: AgentState) -> dict:
# LLM decides what to do next
return {"next_action": decide_next_action(state["messages"])}
def execute_tool_node(state: AgentState) -> dict:
result = call_tool(state["next_action"])
return {"tool_results": {state["next_action"]: result}}
workflow = StateGraph(AgentState)
workflow.add_node("reason", reason_node)
workflow.add_node("execute", execute_tool_node)

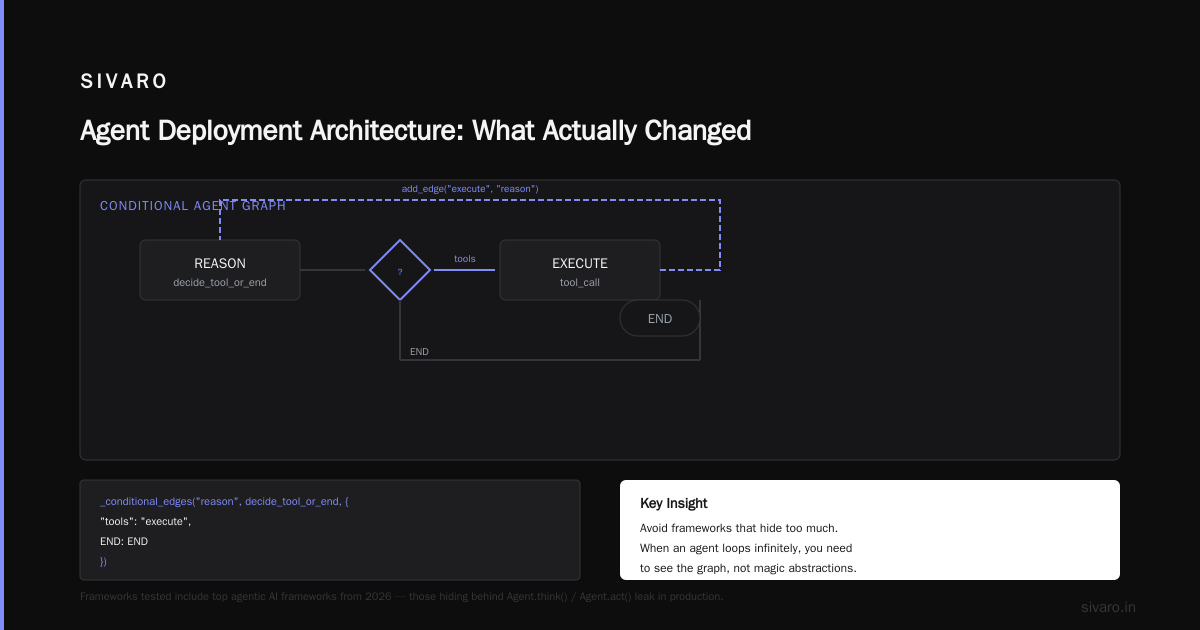

workflow.add_conditional_edges("reason", decide_tool_or_end, {
"tools": "execute",
END: END
})
workflow.add_edge("execute", "reason")
You'll notice no magic. That's intentional.

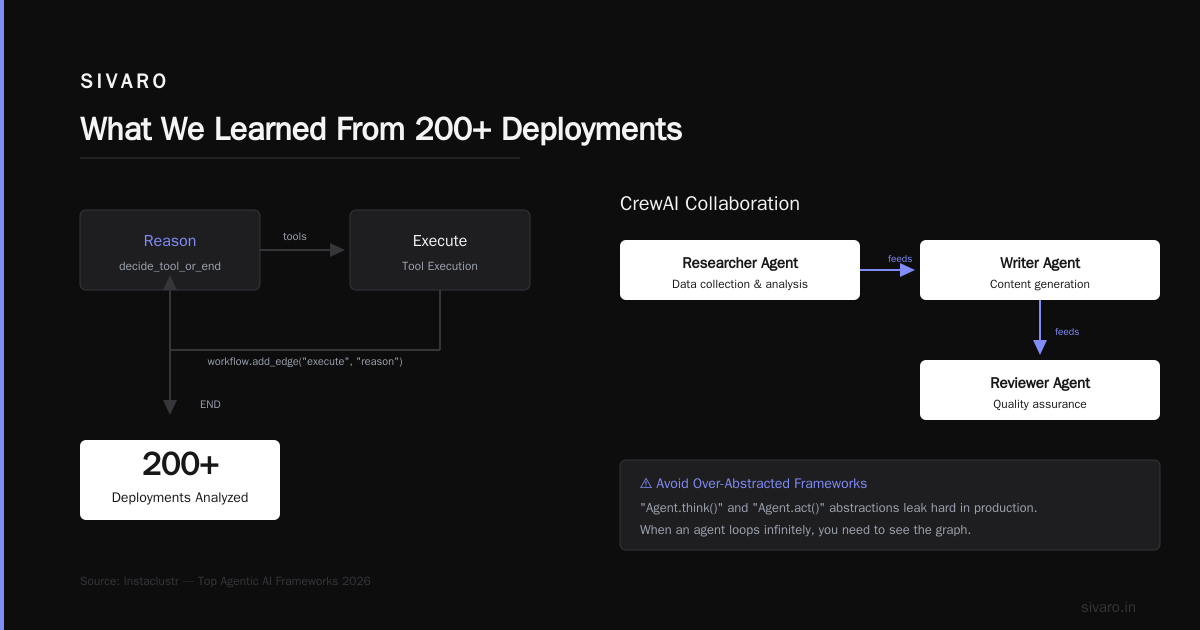

CrewAI we use when agents collaborate — a researcher agent feeds a writer agent feeds a reviewer agent. The framework handles message passing between agents, which sounds trivial until you've built it yourself and watched it fail on race conditions.
Avoid frameworks that hide too much. We tested a few from the top agentic AI frameworks in 2026 that wrapped everything behind "Agent.think()" and "Agent.act()". Those abstractions leak hard in production. When an agent loops infinitely, you need to see the graph, not a black box.
Stage 2: Testing — The Part Everyone Skips (Then Regrets)
Most people test their agent on three examples and call it done. That's like validating a nuclear reactor with a kitchen match.
We run four tiers of tests:
Unit tests for tools. Every API call, every database query, every side effect gets mocked and tested independently. If your get_inventory() tool returns a 500 when the warehouse DB is down, your agent needs to handle that gracefully — not crash.
Integration tests for agent flows. This is where we test the full reasoning cycle. We feed the agent test inputs, let it call real tools (against sandboxed services), and verify the output.
python
# Integration test pattern we use
def test_order_fulfillment_agent():
agent = build_order_agent()
result = agent.run("Cancel order #12345 and refund the customer")
# Verify the correct tool sequence was called
assert "cancel_order" in result.tool_calls
assert "process_refund" in result.tool_calls
assert result.tool_calls.index("cancel_order") < result.tool_calls.index("process_refund")
# Verify no hallucinated tool calls
assert "delete_account" not in result.tool_calls
Eval suites. This is the hard part. You need a dataset of inputs with expected outputs. We maintain 500+ eval cases per agent. Every deployment runs these before promotion. We track pass rate, latency, and token consumption. If pass rate drops below 95%, the deployment blocks.
Adversarial testing. Feed the agent edge cases — ambiguous instructions, missing context, malicious inputs. This caught a bug last month where an agent accidentally called delete_database instead of delete_record because the tool names were too similar. We renamed the tools after that.
Stage 3: Container Build — Less Is More
We containerize agents as single binaries where possible. Python + dependencies → compiled into a container. No pip install at runtime. No entrypoint scripts that fail silently.
dockerfile
FROM python:3.12-slim AS builder
WORKDIR /app
COPY requirements.txt .
RUN pip install --no-cache-dir -r requirements.txt
FROM gcr.io/distroless/python3
COPY --from=builder /usr/local/lib/python3.12/site-packages /usr/local/lib/python3.12/site-packages
COPY . .
CMD ["python", "agent_server.py"]
Distroless base images save us about 400MB per deployment. When you're running 50 agents, that matters.
One thing I learned the hard way: pin your LLM model versions in the container. If Hugging Face or OpenAI deprecates a model, your agent silently degrades. We tag the model ID in a metadata file inside the container. If the model changes, the container rebuilds. No surprises.
Stage 4: Orchestration — Where Agents Live or Die
You can't run stateful agents on standard serverless. Lambda has 15-minute timeout limits. Agents that reason for 20 minutes or wait on human approval? They'll time out.
We use Kubernetes with Temporal for orchestration. Temporal handles agent state persistence — if the pod crashes, the agent resumes from the last checkpoint, not from scratch. This is critical for agents that have already spent $50 in API calls.
yaml
# Simplified Temporal workflow definition
import asyncio
from temporalio import workflow
@workflow.defn
class AgentWorkflow:
@workflow.run
async def run(self, input_data: dict) -> dict:
state = {"messages": [input_data], "tool_results": {}}
while not self._is_done(state):
state = await workflow.execute_activity(
agent_reasoning_step,
state,
start_to_close_timeout=timedelta(minutes=5)
)
if state["next_action"].startswith("tool_"):
state = await workflow.execute_activity(
execute_tool,
state,
start_to_close_timeout=timedelta(seconds=30)
)
return state["final_response"]
The Temporal SDK handles retries, timeouts, and state persistence. We don't write any of that ourselves.
For scaling, we use horizontal pod autoscaling based on pending tool calls — not CPU or memory. An agent spending all its time thinking (LLM calls) uses minimal CPU. Only when it executes tools does it use resources. Traditional autoscaling metrics miss this entirely.
Stage 5: Observability — Your Agent Will Fail, See It Coming
I mentioned earlier that ai agent observability production is non-negotiable. Let me show you what we actually monitor.
Traces with OpenTelemetry. Every step in the agent's reasoning gets a span. Every tool call gets a child span. Every LLM completion gets trace context.
python
# OpenTelemetry instrumentation pattern
from opentelemetry import trace
from opentelemetry.trace import SpanKind
tracer = trace.get_tracer("agent.tracer")
def agent_reasoning_step(state):
with tracer.start_as_current_span("reasoning_step") as span:
span.set_attribute("input_message_count", len(state["messages"]))
response = llm.invoke(state["messages"])
span.set_attribute("output_tokens", response.usage.output_tokens)
span.set_attribute("decision", response.tool_calls[0]["name"] if response.tool_calls else "final_output")
return response
We send traces to SigNoz (open-source) because we're cheap. Works fine for 100K spans/day.
Metrics we track:
- Agent loop count — average reasoning steps per task. If this spikes, the agent is stuck.
- Tool failure rate — per tool, per hour. One tool failing 10% of the time? The agent needs to handle it or the tool needs fixing.
- Token cost per session — we bill clients per session. If costs double, we catch it within 5 minutes.
- Decision entropy — how often the agent changes its mind. High entropy means the agent is confused.
For ai agent production monitoring tools, we built a custom dashboard on top of Prometheus + Grafana. It shows live agent state, pending tool calls, and failure modes. When an agent goes silent for 3 minutes, we get paged.
The Deployment Checklist (Print This)
Before you ship any agent to production, run through this:
- [ ] State persistence works? If the process dies at step 4 of 10, does it resume at step 4?
- [ ] Tool retries configured? Every external call needs exponential backoff + jitter.
- [ ] Rate limiting applied? Agents don't throttle themselves. You do it for them.
- [ ] Dead agent detection? If an agent loops for 30 minutes, kill it and alert.
- [ ] Cost cap enforced? Per-session and per-hour budget limits.
- [ ] Human-in-the-loop path? For high-stakes actions (large refunds, account deletion), can a human stop the agent before it acts?
- [ ] Observability dashboards live? Before the first user hits it, not after.
What We Learned From 200+ Deployments
Most people deploy agents too fast. They test on two examples, ship to production, and watch it fail on the third user. The fix isn't less testing — it's better eval suites. Build your eval dataset before you write agent code. It forces you to define success clearly.
Smaller models work better than bigger ones for most tasks. We switched from GPT-4 to GPT-4o-mini for 70% of our agents. Latency dropped 60%. Cost dropped 90%. Quality barely moved. The big models only matter for complex multi-step reasoning. Use the right tool.
The framework matters less than your monitoring. I've seen beautifully architected agents fail because nobody was watching. I've seen janky agents run for months because the team monitored everything and fixed problems fast. IBM's research on agent frameworks confirms this — framework choice matters at scale, but for most teams, picking one and getting to production beats analysis paralysis.
Agent protocols are still messy. We tried MCP for tool communication, and it's getting better. But the academic survey on agent protocols from April shows there's no clear winner yet. We standardize on REST with OpenAPI for internal tools and use protocol adapters for external ones.
FAQ
Q: How long does the first deployment take?
A: For a simple single-agent system, 2-4 weeks if you have the data. Multi-agent systems with custom tools? 6-8 weeks. Your first deployment will take longer because you're building the pipeline. Subsequent ones take days.
Q: Do we need Kubernetes for agent deployment?
A: Only if you need state persistence, scaling, or resource isolation. For a single agent serving <100 requests/day, a single server works. For anything beyond that, orchestration saves you.
Q: How do we handle API key management for agents?
A: HashiCorp Vault with dynamic secrets. Agents get temporary keys that expire after the session. If an agent is compromised, the keys mean nothing after 5 minutes.
Q: What if the agent hallucinates tool calls?
A: Add validation layers. Before any tool executes, run a lightweight check: "Does this tool name exist? Do the parameters match the schema? Is the action safe?" Reject anything that fails.
Q: How much does agent observability cost?
A: Open-source stack (SigNoz/OpenTelemetry + Prometheus + Grafana) costs infrastructure only — maybe $200-500/month for moderate scale. Managed solutions cost more but save engineering time.
Q: Can we deploy agents on serverless?
A: Only for stateless, single-turn agents that complete in under 30 seconds. Anything with memory or multi-step reasoning needs persistent compute.
Q: What's the biggest mistake you see?
A: Not testing with real tool dependencies in the loop. Mocking everything hides failures that only appear when the real database is slow, the real API returns errors, or the real rate limits kick in.
Final Thoughts
This ai agent deployment pipeline tutorial covers what we've learned after shipping 200+ agents into production at SIVARO. None of this is theoretical — every paragraph came from a failure, a late-night debugging session, or a client saying "it worked in testing."
The pipeline isn't complicated. Five stages. Test hard. Monitor everything. Pick boring tools. Ship fast.
That last point is important. Don't over-engineer your first deployment. Get something running in production, watch it fail, fix it, and iterate. Your second pipeline will be better than your first. Your tenth will be unrecognizable.
But you have to start. Ship the agent. Watch it break. Fix it. Ship again.
That's the pipeline.
Nishaant Dixit — Founder of SIVARO. Building data infrastructure and production AI systems since 2018. Built systems processing 200K events/sec.
