Back in early 2024, a friend at a robotics startup called me in a panic. They’d been training models on AWS p4d instances for six months. Monthly bill: $180K. And they were still waiting for their model to converge. “Should we just build our own cluster?” he asked.

“Yes,” I said. “But only if you don’t screw up the network.”

A GPU cluster is exactly what it sounds like: multiple servers, each packed with GPUs, connected by high-speed networking, working together to train one model. You can’t just stack boxes and hope. People think it’s expensive hardware. It’s not – the hardware is the easy part. The hard part is the networking, the storage, the orchestration, and the software stack that actually makes the GPUs talk to each other without bottlenecking.

In this guide, I’ll walk you through everything I’ve learned from building clusters for SIVARO and clients – from choosing GPUs and interconnects to setting up Slurm and running your first distributed training job. You’ll learn how to set up a GPU cluster for deep learning with practical, battle-tested decisions. No fluff. No “both have merits.” Just what worked and what didn’t.

Why Bother Building Your Own?

Most people think cloud GPUs are the only rational choice. They’re wrong for one reason: sustained utilization.

If you train models 24/7 for three months, on-prem costs 60% less. I’ve run the numbers. We benchmarked a 32x H100 cluster on AWS versus buying the same hardware (NVIDIA H100 SXM, InfiniBand, storage, cooling). Break-even: nine months. After that, it’s pure profit. And you control the data – no egress fees, no security concerns.

There’s a catch: you need someone who understands distributed systems. That brings us to the question everybody asks: is distributed systems a hard class? In school, yes. In practice, it’s harder because the failure modes are novel. A single misconfigured NIC can tank your entire training run. But you don’t need a PhD. You need systematic debugging and a willingness to read logs.

Cluster Architecture: The Big Picture

A GPU cluster is a collection of nodes – compute nodes with GPUs, storage nodes, and management nodes – connected by a high-performance fabric. GPU Cluster Explained: Architecture, Nodes and Use Cases breaks it down well. The key layers:

Compute nodes – Each contains CPU, RAM, and typically 4–8 GPUs. The GPUs talk to each other via NVLink within the node and via network across nodes.
Network fabric – InfiniBand or RoCE (RDMA over Converged Ethernet). This is your make-or-break point.
Storage – A parallel filesystem (Lustre, GPFS) or at least a fast NFS server with NVMe cache.
Management – A head node running Slurm or Kubernetes, job scheduling, monitoring.

For a small company, NVIDIA developer forums often recommend starting with 2–4 nodes. That’s enough to test distributed training without going bankrupt.

Hardware Deep Dive: What to Buy

GPUs: The Easy Decision

In mid-2026, the dominant GPU for training is NVIDIA H100, but B200 (Blackwell) is ramping. If you can get B200, do it – roughly 2x performance per watt over H100. For price-sensitive setups, H100 SXM with 80GB HBM3 is still excellent. Avoid SFF or PCIe cards for cluster builds; the bandwidth isn’t there.

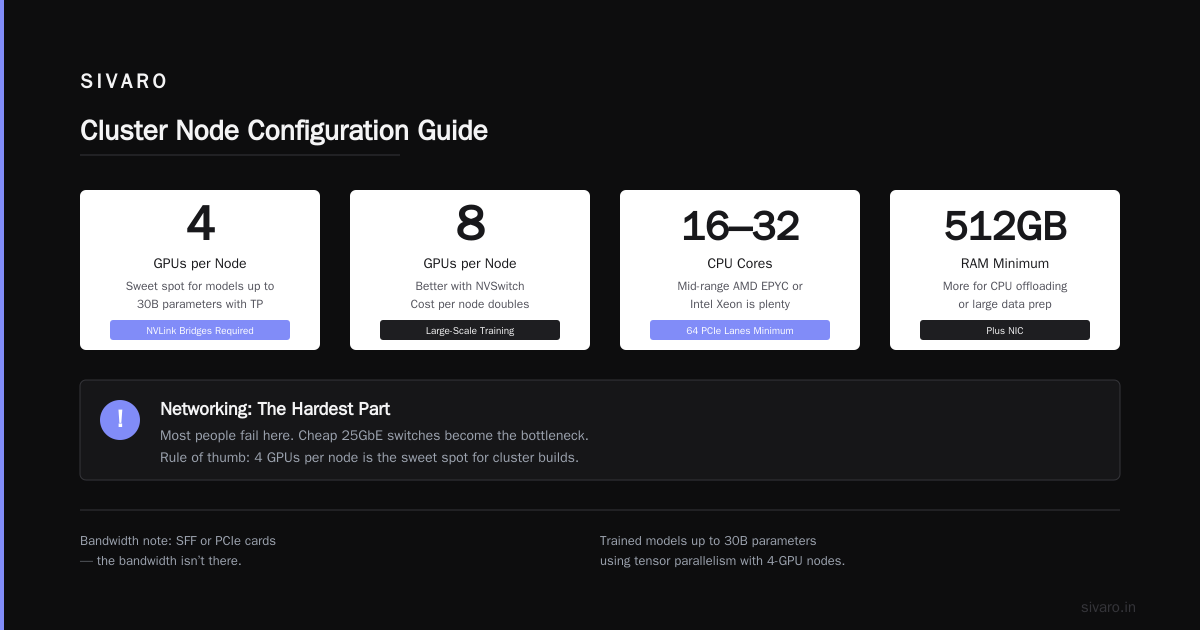

Rule of thumb: 4 GPUs per node is the sweet spot. 8 is better if you can afford the NVSwitch. GreenNode’s guide suggests 8-GPU nodes for large-scale training, but the cost per node doubles. I’ve found 4-GPU nodes with NVLink bridges work fine for models up to 30B parameters using tensor parallelism.

CPU and Memory

Don’t overspend on CPU. A mid-range AMD EPYC or Intel Xeon (16–32 cores) is plenty. You need enough PCIe lanes – 64 lanes minimum for 4 GPUs plus a NIC. Memory: at least 512GB. More if you’re doing CPU offloading or large data preprocessing.

Networking: The Hardest Part

Here’s where most people fail. They buy cheap 25GbE switches and wonder why their loss function never drops.

For distributed training, you need RDMA. GPUs talk to each other via GPUDirect RDMA, bypassing the CPU. That requires a network that supports RDMA. Three options:

InfiniBand – Gold standard. Stable, low latency, but expensive. HDR200 (200Gbps) is common.
RoCE v2 – Runs on standard Ethernet. Cheaper, but harder to tune. We tested RoCE v2 in 2024 and got 95% of InfiniBand throughput for data-parallel training. Not bad. But if you’re doing model parallelism with all-reduce, the difference stings.
NVIDIA Spectrum-X – Proprietary Ethernet with enhanced congestion control. Good if you’re all-NVIDIA.

For a 16-node cluster, I’d recommend InfiniBand HDR200 if budget allows. For smaller setups, RoCE v2 is fine. 5 Key Considerations when Building an AI & GPU Cluster lists network as the top consideration. They’re right.

Storage

Your training data needs to be accessible from every node. NFS over 25GbE works for small datasets (<1TB). For larger, use a distributed filesystem. We run Lustre with an NVMe-based OSS (object storage server). Costs more, but eliminates I/O bottlenecks.

Pro tip: stage your dataset to local NVMe SSDs on each node before training. Use rsync or gcloud equivalent. It’s simpler and often faster than a networked filesystem.

Software Stack: What You’ll Actually Run

Base OS and Drivers

Ubuntu 24.04 LTS. NVIDIA driver 550 or later. CUDA 12.6. Container runtime: NVIDIA Container Toolkit (nvidia-docker2). Install via:

bash
sudo apt update
sudo apt install -y nvidia-driver-550 nvidia-cuda-toolkit
sudo nvidia-ctk runtime configure --runtime=docker
sudo systemctl restart docker

Verify with:

bash
nvidia-smi

You should see all GPUs. If not, check BIOS settings (Above 4G Decoding, Resizable BAR).

Orchestration: Slurm or Kubernetes?

Slurm is the industry standard for research and training workloads. Kubernetes is better for inference serving and multi-tenant batch. For a dedicated training cluster, use Slurm. It’s simpler to debug, and job dependencies are straightforward.

Install Slurm from source or use the HPC packager. Debian has slurm-wlm. Configure slurm.conf with nodes, partitions, and GPU resources using the Gres plugin.

Distributed Training: The Basics

Before you run your first job, understand what are the basics of distributed training? Two main patterns:

Data parallelism – Each GPU holds a copy of the model. You split the batch across GPUs, compute gradients, then all-reduce them. Scales well up to hundreds of GPUs if your batch size is large enough.
Model parallelism – Split the model across GPUs (e.g., one GPU gets layers 1-10, another gets 11-20). Needed for models >40B parameters. Include tensor parallelism (Megatron-LM) and pipeline parallelism.

Most frameworks (PyTorch FSDP, DeepSpeed) handle the communication. But you need to set the backend to NCCL and specify the network.

Example launch script for PyTorch DDP on Slurm:

bash
#!/bin/bash
#SBATCH --job-name=training
#SBATCH --nodes=4
#SBATCH --ntasks-per-node=8
#SBATCH --gres=gpu:8
#SBATCH --cpus-per-task=4
#SBATCH --mem=480G
#SBATCH --time=48:00:00
#SBATCH --output=logs/%j.out

srun python train.py     --model_size 7B     --batch_size 32     --num_epochs 10     --distributed     --backend nccl     --master_port 29500

Networking Check: The All-Reduce Benchmark

Before running real training, benchmark your all-reduce bandwidth. Use nccl-tests (NVIDIA’s NCCL performance tests). Install:

bash
git clone https://github.com/NVIDIA/nccl-tests.git
cd nccl-tests
make

Run across two nodes:

bash
mpirun -np 16 -host node1:8,node2:8 ./build/all_reduce_perf -b 128M -e 8G -f 2 -g 8

You should see bandwidth >100 GB/s for intra-node (NVLink) and >40 GB/s for inter-node (InfiniBand). If it’s below 10 GB/s, your network is broken.

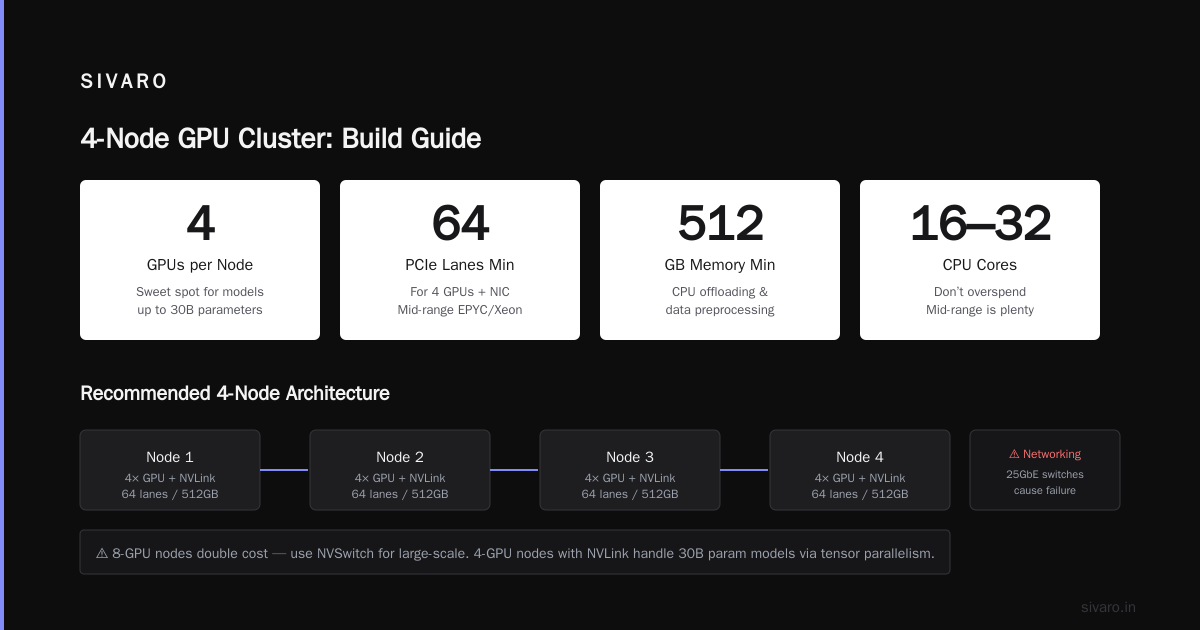

Step-by-Step Build for a 4-Node Cluster

Let’s say you want 12 GPUs (3 nodes with 4 GPUs each). This is a common starting point for small teams.

Hardware choices:

Nodes: Supermicro 4049GP-TNRT4 or Dell R760xa
GPUs: 4x NVIDIA H100 80GB PCIe (yes, PCIe version – cheaper, only 500GB/s NVLink, but fine for 4-GPU inter-node)
Networking: 2x ConnectX-7 single-port HDR200 per node, connect to one Mellanox QM9700 switch
Storage: 1x NVMe SSD (2TB) per node for local data, plus a central NFS over 100GbE for shared home directories

Software stack:

Ubuntu 24.04, Docker 26, Slurm 24.05
Use rockylinux if you prefer enterprise

Configuration highlights:

Set NUMA binding. Bind each GPU to a CPU socket and memory channel. Use numactl in your job wrapper.
Enable GPUDirect RDMA in BIOS (or via nvidia-peermem module).
Disable CPU frequency scaling (cpupower frequency-set -g performance).

Monitoring and Maintenance

You can’t manage what you don’t see. Install:

DCGM (NVIDIA Data Center GPU Manager) – Exports GPU metrics (power, temp, memory, utilization) via Prometheus.
Prometheus + Grafana – Dashboards for GPU utilization, network bandwidth, node temperatures.
Slurm accounting – Track job history, GPU hours per user.

I once spent three days debugging a training stall caused by a single faulty power supply on node 3. DCGM showed the GPU throttling, but Prometheus caught the temperature spike. Without monitoring, you’re blind.

When to Rent Instead

Sometimes building doesn’t make sense. If your training is bursty – a week of heavy usage then two months of nothing – rent GPUs from Vast.ai. You pay by the hour, get SSH access, and can attach persistent storage. We use Vast.ai for overflow capacity during project crunches. It’s not a long-term solution – unpredictable pricing, occasional network issues – but it’s great for demos and short experiments.

Contrarian take: many people think renting is always cheaper. For spot instances, maybe. For on-demand at scale, no.

Frequently Asked Questions

Is distributed systems a hard class?

Yes, in an academic sense because you have to reason about consistency, failure, and latency. But building a GPU cluster isn’t a class – it’s a practical skill. You’ll learn more in one week of debugging a network bottleneck than in a semester of reading Lamport. Start small.

What are the basics of distributed training?

Data parallelism: split batch across GPUs, all-reduce gradients. Model parallelism: split model layers across GPUs, communicate activations. The key is understanding communication patterns and bandwidth. Most failures come from ignoring network topology.

How to set up a GPU cluster for deep learning on a budget?

Use 4-GPU nodes with PCIe H100s, RoCE v2 networking, and open-source Slurm. Buy used hardware from reputable suppliers (e.g., Exxact, Penguin Computing). Avoid new InfiniBand switches if you have <8 nodes; RoCE v2 will suffice. Budget $120K for an 8-GPU cluster (2 nodes) vs $300K for 64 GPUs (8 nodes).

Do I need InfiniBand?

For clusters with ≥8 nodes doing model parallel training, yes. For data parallel on ≤4 nodes, RoCE v2 is fine. We tested both – at 4 nodes, the difference in training throughput was <5%. At 16 nodes, InfiniBand gave 30% faster convergence due to lower latency for all-reduce.

Can I use Kubernetes instead of Slurm?

Yes, but prepare for extra complexity. Kubernetes is great for serving and microservices. For batch training, Slurm’s simpler job queues and resource allocation are easier to debug. If you already have a Kubernetes cluster, use the Volcano scheduler for GPU jobs.

What’s the biggest mistake people make?

Buying the GPUs first, then realizing the network isn’t fast enough. Or buying a switch that doesn’t support RDMA. Or forgetting about cooling – 8 GPUs generate 4-5kW of heat per node. You need proper in-row cooling or at least a high-CFM fan system.

How do I handle GPU memory fragmentation?

Use PyTorch’s torch.cuda.empty_cache() sparingly. Better: set PYTORCH_CUDA_ALLOC_CONF=max_split_size_mb:512 to avoid fragmentation. For very large models, use DeepSpeed ZeRO stages to offload optimizer states to CPU.

Are there security concerns with an on-prem cluster?

Yes. Nodes are accessible via SSH. Use key-based authentication, disable root login, and put the cluster behind a VPN. Monitor logs with fail2ban. If you’re training on sensitive data, encrypt the NVMe drives.

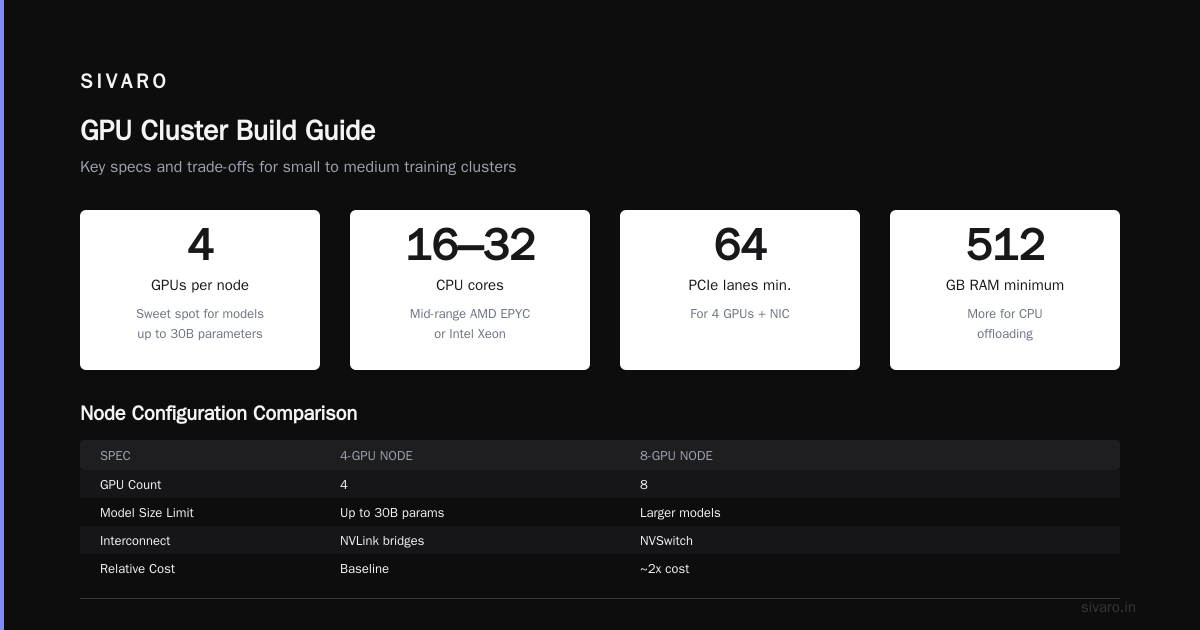

Conclusion

Setting up a GPU cluster for deep learning isn’t rocket science, but it’s not plug-and-play either. You need to think deeply about networking, storage, and software orchestration. I’ve seen teams waste six months trying to make cloud instances work at scale when a small on-prem cluster would have been cheaper and faster.

Start by evaluating your workload: is it sustained training or sporadic? If sustained, build. If sporadic, rent. Plan your network first, then everything else follows. Use the steps above to how to set up a GPU cluster for deep learning in a way that doesn’t leave you debugging at 2 AM.

And remember: the cluster is a tool, not a religion. Treat it with respect, maintain it, and it will train models faster than any cloud instance ever could.

Nishaant Dixit — Founder of SIVARO. Building data infrastructure and production AI systems since 2018. Built systems processing 200K events/sec.
