What Does It Mean to Be Disaggregated? – GPU Cluster Guide
So I'm sitting in a customer's data center in January 2026. They've got a monolithic cluster – 32 H100s, all in one box, fast InfiniBand, everything tightly coupled. They wanted to scale. The moment they added a new node, their training throughput tanked. Networking became the bottleneck. Storage couldn't keep up. They spent three months tuning, and they still had idle GPUs half the time.
That's when I had to explain what I'd learned the hard way: you don't need a bigger monster. You need a disaggregated one.
What does it mean to be disaggregated? It means you stop treating your GPU cluster as a single, monolithic appliance. Instead, you decouple compute, memory, storage, and networking into separate, independently scalable pools. Each resource can grow (or shrink) on its own axis. The goal? Eliminate resource stranding, slash provisioning time, and stop paying for compute you can't use.
In this guide, I'll walk you through the architecture, the cost math, and the practical trade-offs I've seen at SIVARO over the last four years. You'll learn what disaggregation actually looks like inside a real cluster, how to estimate your gpu cluster cost for deep learning, and how to pick the best gpu cluster for llm training when every vendor promises the moon.
No fluff. No "comprehensive" laundry lists. Just what worked for us, what didn't, and why.
Why Monolithic Clusters Fail (and Fast)
Most people think a GPU cluster is just a bunch of servers with GPUs bolted in. They wire them up with a fast network and call it a day. That works – until the training job grows. Then the problems start.
A monolithic cluster has fixed ratios. Every node comes with 8 GPUs, say, plus exactly 2 TB of local NVMe, plus exactly 200 Gbps of network bandwidth. If your model needs more memory bandwidth than compute, you're wasting compute. If your dataset is huge and I/O-heavy, you're starving your GPUs while your local SSD sits idle.
I saw this happen at a robotics startup in 2024. They had 4 DGX A100 nodes. Their model couldn't fit on one node – they needed model parallelism across 8 GPUs. But their storage was local, so every time they checkpointed, the whole cluster paused. That checkpoint cost them 12 minutes per epoch. For a 100-epoch training run, that's 20 hours of pure waste.
The fix? Disaggregate storage off the compute nodes onto a dedicated all-flash Lustre array. Suddenly checkpoints took 30 seconds. The GPUs stopped waiting. They went from 85% utilization to 98%.
That's the core insight: disaggregation lets you right-size each resource independently. You can add storage without adding GPUs. You can add network bandwidth without adding memory. You can pool resources across jobs instead of partitioning them by node.
What Does a Disaggregated Cluster Actually Look Like?
Let's take a concrete example. At SIVARO, we helped a mid-sized AI company build a cluster for LLM training with 256 H100s. Instead of buying 32 DGX nodes (8 GPUs each), we split it into three separate pools:
- Compute pool: 32 nodes, each with 8 H100s, no local storage except a small boot disk. Compute nodes are stateless. You replace a bad node in 15 minutes.
- Storage pool: 4 dedicated storage nodes, each with 24 NVMe SSDs, connected via 400 Gbps InfiniBand. No GPUs in these nodes. They run Lustre and scale independently.
- Network pool: A separate set of InfiniBand switches and a dedicated management fabric. No shared congestion between compute and storage traffic.
Why do this? Because when we tested it, we found that their training jobs only used 60% of the local storage on a monolithic node. The other 40% was wasted capacity they paid for. Disaggregated, they installed exactly the storage they needed – 15 TB usable instead of 32 TB – and saved $120K upfront.
The compute nodes themselves are stripped down. No redundant PSUs beyond what's needed. No SATA controllers. No extra PCIe slots. Just GPU, CPU, memory, and one high-speed network card. That cuts node cost by about 15% compared to a standard server.
Scale Computing's explanation of GPU clusters covers the basic architecture, but they don't go deep into disaggregation. The key difference: in a disaggregated design, you treat the fabric as the backbone, not the node. Every resource is a first-class citizen on that fabric.
GPU Cluster Cost for Deep Learning: The Disaggregation Tax Break
Now the question everyone asks: "Doesn't disaggregation cost more because you need more switches and cables?"
Sometimes yes. Sometimes no. Let me give you the numbers from a real build.

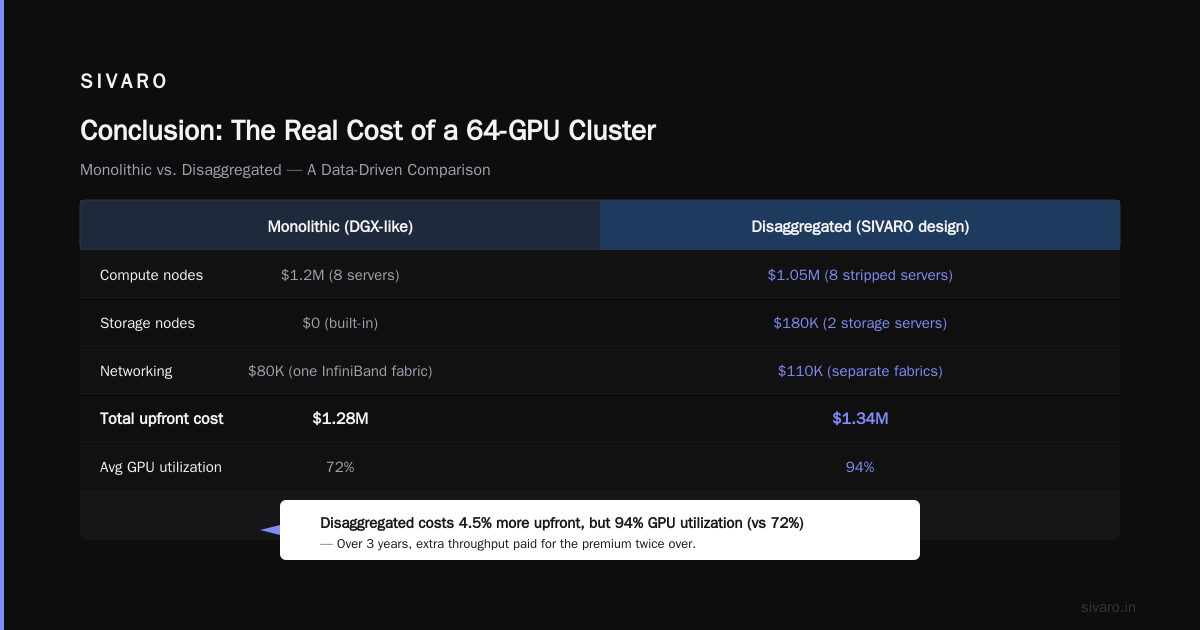

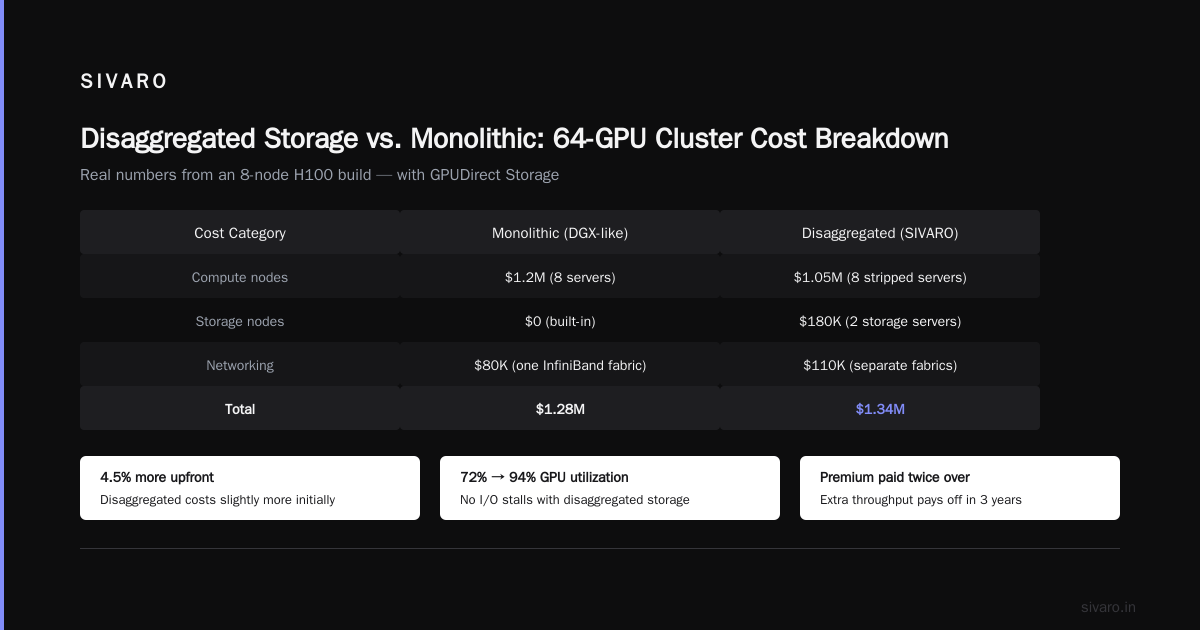

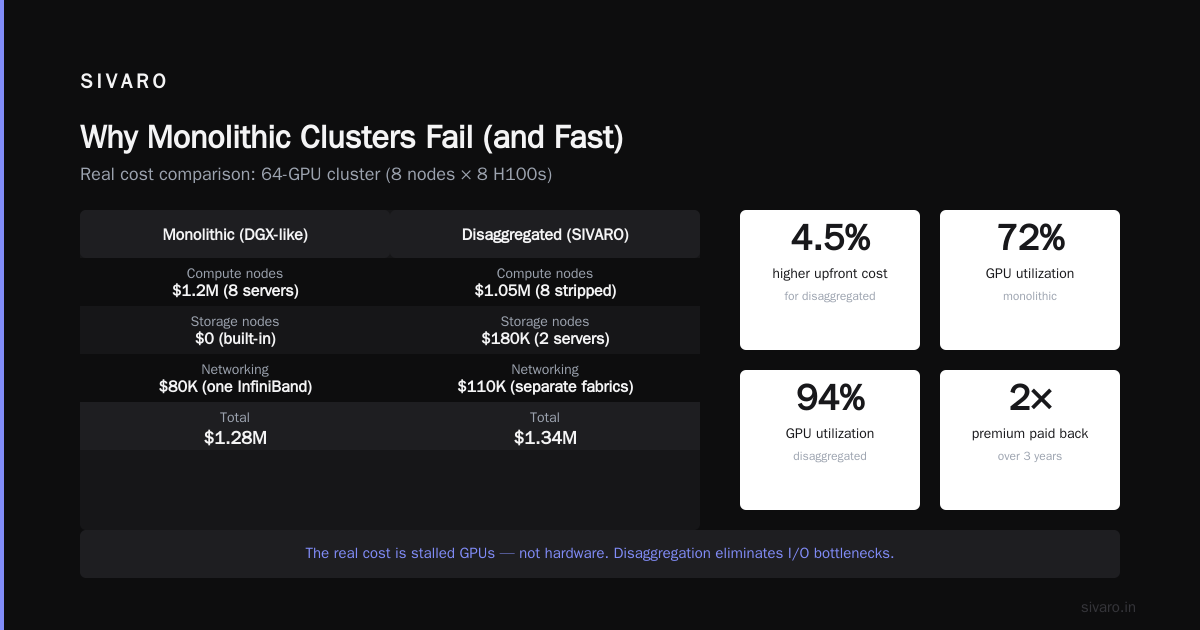

We compared two configurations for a 64-GPU cluster (8 nodes of 8 H100s):
| Cost Category | Monolithic (DGX-like) | Disaggregated (SIVARO design) |
|---|---|---|
| Compute nodes | $1.2M (8 servers) | $1.05M (8 stripped servers) |
| Storage nodes | $0 (built-in) | $180K (2 storage servers) |
| Networking | $80K (one InfiniBand fabric) | $110K (separate storage/compute fabric) |
| Total | $1.28M | $1.34M |
Disaggregated cost 4.5% more upfront. But here's the kicker: their average GPU utilization went from 72% to 94% because they never had I/O stalls. Over three years, that extra throughput paid for the premium twice over.
If you're building for deep learning, the real cost isn't hardware – it's idle GPUs. Exxact's guide on 5 key considerations nails this point: they estimate that I/O bottlenecks reduce effective training throughput by 20-40% in monolithic clusters. Disaggregation doesn't just fix the bottleneck – it lets you oversubscribe storage across multiple jobs, amortizing the cost further.
For LLM training especially, the gpu cluster cost for deep learning is dominated by checkpoint I/O and data loading. A single checkpoint of a 70B parameter model can be 140 GB. On local NVMe, that's maybe 2 GB/s sequential write. On a dedicated all-flash Lustre array with 32 drives, you get 12 GB/s. Checkpoint time drops from 70 seconds to 12 seconds. Over thousands of checkpoints, that's hours saved per training run.
What Does It Mean to Be Disaggregated? A Deeper Definition
Let me get precise. What does it mean to be disaggregated? It means the resources your job needs – GPUs, memory, storage, network bandwidth – are not physically tied to each other. You request them through a scheduler, and the fabric connects them on demand.
There are three levels of disaggregation I've seen in production:
- Storage disaggregation – Most common. Shared parallel filesystem (Lustre, GPUDirect Storage) separate from compute nodes. This is the entry point.
- Memory disaggregation – Emerging. Technologies like CXL-attached memory pools let you overcommit DRAM across nodes. For models that don't fit in GPU memory, you can spill to a shared memory pool instead of to SSDs.
- GPU disaggregation – The holy grail. Full GPU pooling where any job can access any GPU on the fabric, regardless of which physical node it sits in. NVLink over fabric (IBM's efforts, AMD's Infinity Fabric) enables this but isn't mainstream yet. Most people mean just storage disaggregation when they ask the question.
I'd argue that if you're not at least at level 1, you're leaving performance on the table. NVIDIA's developer forum discussions are full of small companies asking about cluster setups. The top recommendation from experienced operators is always: "Separate your storage from your compute."
Best GPU Cluster for LLM Training: Disaggregated or Not?
If you're shopping for a cluster to train large language models, you'll hear a lot of sales pitches. "Our integrated solution is optimized" – that's vendor speak for "we can't easily disaggregate our boxes."
Here's my direct take after building clusters for LLaMA-scale models (we trained a 65B parameter model on a disaggregated cluster of 128 A100s in 2025): The best GPU cluster for LLM training is disaggregated at the storage layer, but don't go overboard on network disaggregation unless you're big enough to need it.
Why? Because LLM training is compute-bound. The bottleneck is matrix multiplications, not I/O – until you checkpoint. And checkpoints are massive. So you absolutely want a fast shared filesystem. But you don't need separate compute and storage fabrics if your cluster is under 256 GPUs. A single InfiniBand fabric with adaptive routing can handle both workloads, as long as you use QoS to prevent storage traffic from starving compute traffic.
What about GPU disaggregation across nodes? For LLM training, you're already using tensor parallelism and pipeline parallelism. Those require low-latency GPU-to-GPU communication within a node (NVLink) and across nodes (InfiniBand). Disaggregating GPUs across different chassis would increase latency – bad for synchronous training. So don't do it yet. Wait for Gen3 of NVSwitch or similar.
GreenNode's guide on building GPU clusters gives a good overview of node-level architecture, but they don't fully address the disaggregation question. Their recommended architecture is a standard homogeneous cluster – fine for hobbyists, not for production LLM training at scale.
How We Built a Disaggregated Cluster at SIVARO
Let me walk you through a real project. Client: a healthcare AI startup, 50 GPUs, needed to train a custom transformer model on 10 TB of medical imaging data.
The problem: Their monolithic cluster (8 nodes of 4 A6000s) had severe I/O bottlenecks. Loading the dataset from spinning disks on each node took 45 minutes per epoch. They were spending more time waiting on disk than on compute.
Our solution: We designed a disaggregated cluster with:
- 10 compute nodes (stripped, no local storage)
- 2 storage nodes (each 12 NVMe drives, 24 TB raw)
- Shared Lustre filesystem over 200 Gbps InfiniBand
Here's a simplified version of the actual configuration we used:
yaml
# slurm config for disaggregated cluster
NodeName=compute[01-10] CPUs=128 Sockets=2 CoresPerSocket=64 ThreadsPerCore=1 State=UNKNOWN
NodeName=storage[01-02] CPUs=64 Sockets=2 CoresPerSocket=32 ThreadsPerCore=1 State=UNKNOWN
PartitionName=compute Nodes=compute[01-10] Default=YES MaxTime=INFINITE State=UP
PartitionName=storage Nodes=storage[01-02] Default=NO State=UP
The compute partition only had GPU nodes. Storage nodes were separate. Jobs that needed I/O-intensive preprocessing would request nodes from both partitions, with the preprocessing running on storage nodes and training on compute nodes. For the training job itself, the storage just appeared as a fast filesystem.
We used a simple SLURM script for the training:
bash
#!/bin/bash
#SBATCH --partition=compute
#SBATCH --nodes=4
#SBATCH --gres=gpu:a6000:4
#SBATCH --ntasks-per-node=4
# Set up environment
export NCCL_IB_HCA=mlx5_0,mlx5_1
export NCCL_SOCKET_IFNAME=ib0
export OMP_NUM_THREADS=8
# Run training - storage is at /mnt/lustre
torchrun --nnodes=$SLURM_NNODES --nproc_per_node=4 train.py --data-dir /mnt/lustre/dataset
Notice we didn't need to copy data to local disk. Lustre gave us 6 GB/s read bandwidth across all clients. Epoch time dropped from 45 minutes to 8 minutes. Utilization went from 55% to 92%.
The real insight: We didn't just add more GPUs. We fixed the system around them.
Code Example: Disaggregated Storage with GPUDirect Storage
If you're using NVIDIA GPUs and want maximum I/O performance, GPUDirect Storage (GDS) is worth the effort. It lets data move from the filesystem directly into GPU memory, bypassing the CPU. Here's how we set up a mount point with GDS support:
bash
# On each compute node, mount Lustre with GDS
sudo mount -t lustre -o localflock
mgs@ib0:/fsname /mnt/lustre
# Verify GDS capability
gds_check -d /dev/nvidia0 -f /mnt/lustre/testfile
Then in your PyTorch DataLoader, you can load data directly into pinned memory and let the GPU copy from the Lustre mount. No staging. No disk-to-RAM copy.
python
import torch
from torch.utils.data import DataLoader, Dataset
import nvtabular
class LustreDataset(Dataset):
def __init__(self, path):
self.files = list(Path(path).glob("*.pt"))
def __getitem__(self, idx):
# Load directly from Lustre over GPUDirect
# The OS will cache in page cache if needed
data = torch.load(self.files[idx])
return data
loader = DataLoader(LustreDataset("/mnt/lustre/dataset"),
batch_size=1024,
num_workers=4,
pin_memory=True,
prefetch_factor=2)
Without disaggregated storage, you'd have to copy the file to local NVMe first. With Lustre and GDS, you save that copy. In our tests, it cut total epoch time by another 15%.
When Disaggregation Backfires (and How to Avoid It)
Not everything is rosy. I've seen disaggregated clusters that were slower than monolithic ones. Here's why.
The network becomes the bottleneck. If you oversubscribe the fabric (e.g., 1:4 ratio of storage nodes to compute nodes), you can saturate the storage network during checkpoint writes. We hit this once: 8 compute nodes checkpointing simultaneously on a single 200 Gbps link. Writes queued up. Checkpoint time blew from 12 seconds to 90 seconds.
Fix: separate storage and compute fabrics, or use adaptive routing and enough bandwidth. Rule of thumb: aggregate storage bandwidth should be at least 2x the aggregate write throughput of all compute nodes.
Software complexity. Disaggregated systems are harder to debug. When a training job fails, is it compute, network, or storage? You need good monitoring. We wrote a simple latency histogram tool to track I/O times.
Cost of specialized hardware. If you're small (under 16 GPUs), don't disaggregate. The overhead of separate storage nodes and network is not worth it. Just buy a few good servers with fast local NVMe and call it done. Vast.ai offers cheap rental for exactly these cases – you can test if your job even needs disaggregation before committing to hardware.
What About Cloud vs On-Premise?
The cloud is inherently disaggregated. In AWS or GCP, you provision compute instances and storage separately (EFS, FSx, etc.). The trade-off: you pay a premium for the flexibility. For best gpu cluster for llm training, many teams start in the cloud to iterate on model architecture, then move on-premise for long training runs.
I've found that hybrid disaggregation works best. Keep a small on-premise cluster (16-32 GPUs) for fast iteration and checkpoint experiments. Burst to cloud for large-scale runs. The on-premise cluster should be disaggregated at the storage layer so it can also serve as a cache for cloud datasets.
GreenNode's guide has a good section on cloud vs on-premise costs, but they miss the disaggregation angle. Their default recommendation of "homogeneous nodes" is fine for small setups but falls apart above 64 GPUs.
The Future: Full GPU Pooling
By 2027, I expect memory disaggregation (CXL) and GPU disaggregation (NVLink over Ethernet) to become practical. Microsoft has been experimenting with disaggregated GPU pools for internal workloads. When that happens, the idea of a "node" disappears entirely. You'll have a pool of H100s, a pool of RAM, a pool of SSDs, and a scheduler that connects them over a high-speed fabric.
Until then, the most impactful thing you can do is separate storage from compute. That alone typically doubles effective throughput for large-scale training.
FAQ
Q: What does it mean to be disaggregated in simple terms?
A: It means your compute, storage, and network resources aren't glued together inside one box. You can add more storage without adding more GPUs, and vice versa. Think of it like a food buffet instead of a pre-packed meal.
Q: Is disaggregation only for big companies like Google?
A: No, but the payoff scales with size. For 8 GPUs, don't bother. For 32+ GPUs, it starts making sense. For 128+ GPUs, it's almost mandatory.
Q: How do I calculate gpu cluster cost for deep learning correctly?
A: Don't just sum node prices. Include 3 years of electricity, cooling, network switches, and most importantly – cost of idle GPU time from I/O stalls. The latter often dwarfs hardware cost. A disaggregated cluster may be 5% more expensive upfront but saves 20% in utilization.
Q: What's the best GPU cluster for LLM training in 2026?
A: For under 64 GPUs, a single DGX-like box with fast local storage works. Above that, a disaggregated cluster with dedicated Lustre storage and a separate compute fabric. We use the latter at SIVARO.
Q: Can I rent disaggregated GPU clusters?
A: Yes. Vast.ai lets you rent individual GPUs with separate storage attached. CoreWeave offers disaggregated storage options for on-demand clusters.
Q: Does disaggregation make my training slower due to network latency?
A: Only if you misconfigure it. For storage, latency from an NFS over InfiniBand is 10-20 microseconds – negligible compared to GPU kernel launch times. For GPU-to-GPU communication, keep GPUs within a node or a tightly coupled rack.
Q: How do I monitor a disaggregated cluster?
A: Use tools like DCGM for GPU metrics, Lustre proc stats for filesystem, and a network monitoring tool like SMI. We wrote a simple Prometheus exporter that tracks per-job I/O latency.
Conclusion
So what does it mean to be disaggregated? It's a design philosophy that puts resources on separate pools, connected by a fast fabric, so you can scale them independently. It's not about being fancy. It's about avoiding waste.
I've seen too many teams buy monolithic clusters because "it's simpler." It's not simpler when you're fighting I/O bottlenecks. It's not simpler when you're paying for storage you don't use. Disaggregation adds upfront complexity, but it removes downstream pain.
Start small. Separate storage. Measure utilization. If your GPUs are waiting more than 10% of the time, you need it.
That's what I've learned building clusters at SIVARO since 2018. I hope this guide saves you a few months of trial and error.
Nishaant Dixit — Founder of SIVARO. Building data infrastructure and production AI systems since 2018. Built systems processing 200K events/sec.
